121-□-10G Types (Double clutches)

121-□-10G Types (Double clutches)

ダウンロード

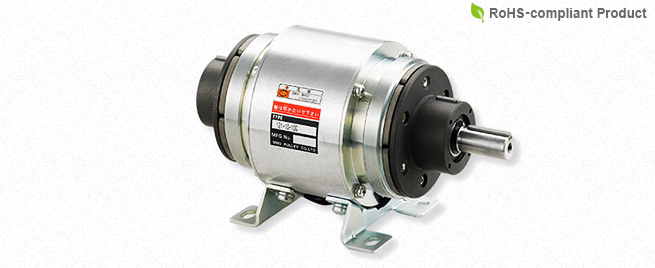

Features of 121-□-10G Types (Double clutches)

These share the same basic structure as the 121-[ ]-20 type clutch/brake units. They are double-clutch units that have a through-shaft structure and place clutches (101-[ ]-15 types) at both ends of the drum.The hub may be used as the input for two-stage speed-change/forward-reverse operation, or the shaft may be used as the input for power distribution or the like. Select the input method that works best for you. Just as with the 121-[ ]-20, the construction holds up well under radial loads due to a wide bearing span, so it can be used under high tension when mounted with V pulleys, spur gears or the like.
