ALS (R) Type Specifications

ALS (R) Types (key/set screw type)

[Specifications]

ModelTorqueMisalignmentMax. rotation speed [min-1Static torsional stiffness [N・m/rad]Radial stiffness [N/mm]Moment of inertia [kg・m2Mass [kg]
Nominal [N・m]Max. [N・m]Parallel [mm]Angular [°]Axial [mm]
ALS-014-R240.1010 to +0.634100213801.91×10-70.007
ALS-020-R5100.1010 to +0.823800434001.08×10-60.018
ALS-030-R12.5250.1010 to +1.0159001366506.25×10-60.047
ALS-040-R17340.1010 to +1.211900155017003.87×10-50.15
ALS-055-R601200.1010 to +1.48700200013501.66×10-40.35
ALS-065-R1603200.1010 to +1.57400310014003.57×10-40.51
ALS-080-R3256500.1010 to +1.86000600017101.06×10-31.01
ALS-095-R4509000.101-0.5 to +2.050001000042002.24×10-31.50
ALS-105-R52510500.151-0.9 to +2.045001200050003.72×10-32.05

*Axial displacement of the ALS-014-R to ALS-080-R is not allowed in the negative direction.

*Max. rotation speed does not take into account dynamic balance.

*Stiffness values given are from measurements taken at 20℃.

*The moment of inertia and mass are measured for the maximum bore diameter.

[Dimensions]

Unit [mm]
Modeld1, d2DLL1, L2ESC
Pilot boreMin.Max.
ALS-014-R336.514227813.5
ALS-020-R449.62030101015
ALS-030-R5614303511131.55.5
ALS-040-R582240662516212.5
ALS-055-R5102855783018215
ALS-065-R51438659035202.517.5
ALS-080-R101945801144524322.5
ALS-095-R81955951265026325
ALS-105-R10196010514056283.528

*"Pilot bore" refers to center processing.

[Standard bore diameter]

Unit [mm]
ModelStandard bore diameter d1, d2 [mm]
34566.357899.5251011121415161718192022242528303235384042454850555660
ALS-014-R
ALS-020-R
ALS-030-R
ALS-040-R
ALS-055-R
ALS-065-R
ALS-080-R
ALS-095-R
ALS-105-R

*The bore diameters marked with ● are supported as standard bore diameter.

*ø11 and below have no keyway; ø12 and above can be processed for old JIS standards, new JIS standards, and new standard motors.

[Element]

Unit [mm]
ModelFR1R2KA
ALS-014-R-EL6.23.5--2.51.2
ALS-020-R-EL8.26.2--3.41.4
ALS-030-R-EL10.28.5--42.2
ALS-040-R-EL1218--4.53
ALS-055-R-EL1424--5.53
ALS-065-R-EL1530--5.54
ALS-080-R-EL18371574
ALS-095-R-EL20432084
ALS-105-R-EL2150208.54

[Standard Hole-drilling Standards]

Unit [mm]
Models compliant with the old JIS standard (class 2) JIS B 1301 1959Models compliant with the new JIS standard (H9) JIS B 1301 1996Models compliant with the new JIS standard (JS9) JIS B 1301 1996Models compliant with the motor standard JIS C 4210 2001
Nominal bore diameterBore diameter
[d1・d2]
Keyway width
[W1・W2]
Keyway height
[T1・T2]
Set screw hole
[M]
Nominal bore diameterBore diameter
[d1・d2]
Keyway width
[W1・W2]
Keyway height
[T1・T2]
Set screw hole
[M]
Nominal bore diameterBore diameter
[d1・d2]
Keyway width
[W1・W2]
Keyway height
[T1・T2]
Set screw hole
[M]
Nominal bore diameterBore diameter
[d1・d2]
Keyway width
[W1・W2]
Keyway height
[T1・T2]
Set screw hole
[M]
Tolerance
H7,H8
Tolerance
E9
Tolerance
H7
Tolerance
H9
Tolerance
H7
Tolerance
JS9
Tolerance
G7,F7
Tolerance
H9
33+0.01801-M3
44+0.01802-M3
55+0.01802-M3
66+0.01802-M4
6.356.35+0.02202-M4
77+0.02202-M4
88+0.02202-M4
99+0.02202-M4
9.5259.525+0.02202-M4
1010+0.02202-M4
1111+0.01802-M4
1212+0.01804+0.050+0.02013.5+0.302-M412H12+0.01804+0.030013.8+0.302-M412J12+0.01804±0.015013.8+0.302-M4
1414+0.01805+0.050+0.02016.0+0.302-M414H14+0.01805+0.030016.3+0.302-M414J14+0.01805±0.015016.3+0.302-M414N14+0.024+0.0065+0.030016.3+0.302-M4
1515+0.01805+0.050+0.02017.0+0.302-M415H15+0.01805+0.030017.3+0.302-M415J15+0.01805±0.015017.3+0.302-M4
1616+0.01805+0.050+0.02018.0+0.302-M416H16+0.01805+0.030018.3+0.302-M416J16+0.01805±0.015018.3+0.302-M4
1717+0.01805+0.050+0.02019.0+0.302-M417H17+0.01805+0.030019.3+0.302-M417J17+0.01805±0.015019.3+0.302-M4
1818+0.01805+0.050+0.02020.0+0.302-M418H18+0.01806+0.030020.8+0.302-M518J18+0.01806±0.015020.8+0.302-M5
1919+0.02105+0.050+0.02021.0+0.302-M419H19+0.02106+0.030021.8+0.302-M519J19+0.02106±0.015021.8+0.302-M519N19+0.028+0.0076+0.030021.8+0.302-M5
2020+0.02105+0.050+0.02022.0+0.302-M420H20+0.02106+0.030022.8+0.302-M520J20+0.02106±0.015022.8+0.302-M5
2222+0.02107+0.061+0.02525.0+0.302-M622H22+0.02106+0.030024.8+0.302-M522J22+0.02106±0.015024.8+0.302-M5
2424+0.02107+0.061+0.02527.0+0.302-M624H24+0.02108+0.036027.3+0.302-M624J24+0.02108±0.018027.3+0.302-M624N24+0.028+0.0078+0.036027.3+0.302-M6
2525+0.02107+0.061+0.02528.0+0.302-M625H25+0.02108+0.036028.3+0.302-M625J25+0.02108±0.018028.3+0.302-M6
2828+0.02107+0.061+0.02531.0+0.302-M628H28+0.02108+0.036031.3+0.302-M628J28+0.02108±0.018031.3+0.302-M628N28+0.028+0.0078+0.036031.3+0.302-M6
3030+0.02107+0.061+0.02533.0+0.302-M630H30+0.02108+0.036033.3+0.302-M630J30+0.02108±0.018033.3+0.302-M6
3232+0.025010+0.061+0.02535.5+0.302-M832H32+0.025010+0.036035.3+0.302-M832J32+0.025010±0.018035.3+0.302-M8
3535+0.025010+0.061+0.02538.5+0.302-M835H35+0.025010+0.036038.3+0.302-M835J35+0.025010±0.018038.3+0.302-M8
3838+0.025010+0.061+0.02541.5+0.302-M838H38+0.025010+0.036041.3+0.302-M838J38+0.025010±0.018041.3+0.302-M838N38+0.050+0.02510+0.036041.3+0.302-M8
4040+0.025010+0.061+0.02543.5+0.302-M840H40+0.025012+0.043043.3+0.302-M840J40+0.025012±0.021543.3+0.302-M8
4242+0.025012+0.075+0.03245.5+0.302-M842H42+0.025012+0.043045.3+0.302-M842J42+0.025012±0.021545.3+0.302-M842N42+0.050+0.02512+0.043045.3+0.302-M8
4545+0.025012+0.075+0.03248.5+0.302-M845H45+0.025014+0.043048.8+0.302-M1045J45+0.025014±0.021548.8+0.302-M10
4848+0.025012+0.075+0.03251.5+0.302-M848H48+0.025014+0.043051.8+0.302-M1048J48+0.025014±0.021551.8+0.302-M1048N48+0.050+0.02514+0.043051.8+0.302-M10
5050+0.025012+0.075+0.03253.5+0.302-M850H50+0.025014+0.043053.8+0.302-M1050J50+0.025014±0.021553.8+0.302-M10
5555+0.030015+0.075+0.03260.0+0.302-M1055H55+0.030016+0.043059.3+0.302-M1055J55+0.030016±0.021559.3+0.302-M1055N55+0.060+0.03016+0.043059.3+0.302-M10
5656+0.030015+0.075+0.03261.0+0.302-M1056H56+0.030016+0.043060.3+0.302-M1056J56+0.030016±0.021560.3+0.302-M10
6060+0.030015+0.075+0.03265.0+0.302-M1060H60+0.030018+0.043064.4+0.302-M1060J60+0.030018±0.021564.4+0.302-M1060N60+0.060+0.03018+0.043064.4+0.302-M10

*All standards starting from ø11 are the same as those in the old JIS standards column.

*For ALS-014, set screw size is M3.

*Positions of set screws and keyways are not on the same plane.

*Set screws are included with the product.

*Positioning precision for keyway milling is determined by sight.

*Contact Miki Pulley when the keyway requires a positioning precision for a particular flange hub.

*Consult the technical documentation at the end of this volume for standard dimensions for bore drilling other than those given here.

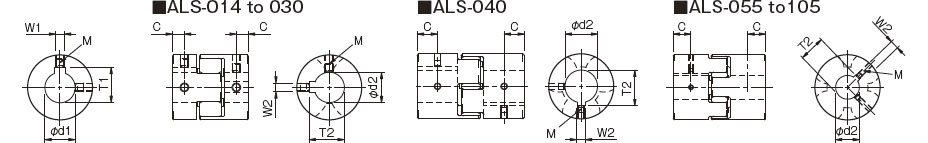

[Set screw position]

Unit [mm]
ModelDistance C from edge[mm]
ALS-0143.5
ALS-0205
ALS-0305.5
ALS-04012.5
ALS-05515
ALS-06517.5
ALS-08022.5
ALS-09525
ALS-10528

ALS (R) Types (clamp types)

[Specifications]

Unit [mm]
ModelMisalignmentMax. rotation speed [min-1Static torsional stiffness [N・m/rad]Radial stiffness [N/mm]Moment of inertia [kg・m2Mass [kg]
Parallel [mm]Angular [°]Axial [mm]
ALS-014-R0.110 to +0.610000213801.98×10-70.007
ALS-020-R0.110 to +0.810000434001.09×10-60.019
ALS-030-R0.110 to +1.0100001366506.19×10-60.045
ALS-040-R0.110 to +1.210000155017004.01×10-50.16
ALS-055-R0.110 to +1.47000200013501.63×10-40.34
ALS-065-R0.110 to +1.55900310014003.69×10-40.54
ALS-080-R0.110 to +1.84800600017101.04×10-31.00

*Axial displacement is not allowed in the negative direction.

*Max. rotation speed does not take into account dynamic balance.

*Stiffness values given are from measurements taken at 20℃.

*The moment of inertia and mass are measured for the maximum bore diameter.

[Dimensions]

Unit [mm]
Modeld1, d2DDBLL1, L2ESBGMTightening torque [N・m]
Min.Max.
ALS-014-R361416.1227813.54.81-M20.4
ALS-020-R482020301010156.51-M2.51
ALS-030-R61430303511131.55.510.51-M31.5
ALS-040-R8204043.2662516212.5151-M57
ALS-055-R10285555783018210.5201-M614
ALS-065-R14356569.89035202.511.524.51-M830
ALS-080-R194580801144524311.5301-M830

*The øDB value is measured assuming that the head of the clamping bolt is larger than the external diameter of the hub.

*The nominal diameter for the clamping bolt M is equal to the quantity minus the nominal diameter of the screw threads, where the quantity is for a hub on one side.

Standard bore diameter and allowable transmission torque

ModelStandard bore diameters d1, d2 [mm] and rated transmission torque [N・m]
34566.357899.5251011121415161819202224252830323538404245
ALS-014-R0.310.420.540.65
ALS-020-R1.21.62.12.22.63
ALS-030-R22.22.73.444.44.75.467.4
ALS-040-R81214161923313434343434
ALS-055-R21252835384148515461677180
ALS-065-R4044475458616875798996103114
ALS-080-R5359728490108121133151170182194212

*Bore diameters whose fields contain numbers are supported as the standard bore diameters.

*Bore diameters whose fields contain numbers are restricted in their rated transmission torque by the holding power of the shaft connection component. The numbers indicate the rated transmission torque value [N·m].

* The recommended processing tolerance for paired mounting shafts is the h7 class. However, for a bore diameter of ø35, the shaft tolerance is -0.025 to +0.010

*Bore diameters between the minimum and maximums shown in the dimensions table are compatible, but bore diameters other than those shown in the above table require other arrangements. Contact Miki Pulley for details.

[Element]

Unit [mm]
ModelFR1R2KA
ALS-014-R-EL6.23.5--2.51.2
ALS-020-R-EL8.26.2--3.41.4
ALS-030-R-EL10.28.5--42.2
ALS-040-R-EL1218--4.53
ALS-055-R-EL1424--5.53
ALS-065-R-EL1530--5.54
ALS-080-R-EL18371574
ALS-095-R-EL20432084
ALS-105-R-EL2150208.54
