Linear Shaft Drives

Cylindrical linear motor systems drive using simple system

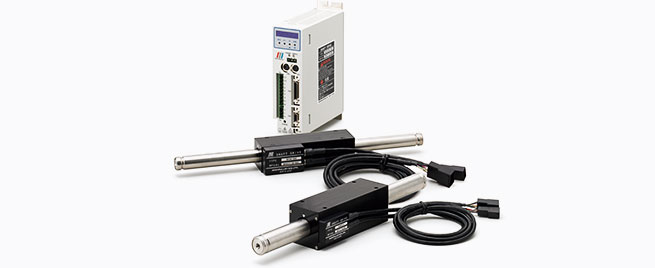

These new cylindrical linear motor systems were designed to enable driving with the simplest possible system. They can detect position using flux generated by the shaft, so they operate without external position sensors and generate thrust soon after startup without the need for external magnetic pole detectors, since built-in position sensors detect pole positions directly. The drivers also have built-in positioning functions that enable relatively complex positioning operations.

Application
Optical equipment/Semiconductor production equipment/Food machinery/Inspection equipment

  • 製品一覧
  • アプリケーション
  • ムービー

SHM-16+SHD2-06

These new cylindrical linear motor systems were designed to enable driving with the simplest possible system. They detect position using flux generated by the shaft, so they can operate without external position sensors.The drivers also have built-in positioning functions that enable relatively complex positioning operations. The motor shaft diameters are ⌀16 mm and rated thrust is 11 N to 25 N.

基本スペック

  • Rated thrust

    11 N to 25 N

  • Shaft diameter

    φ16 mm

  • Maximum stroke

    1045 mm

Click to see details of this product

  • カタログ・技術資料ダウンロード
  • 2D CADダウンロード

SHM-25 + SHD2-08

These new cylindrical linear motor systems were designed to enable driving with the simplest possible system. They detect position using flux generated by the shaft, so they can operate without external position sensors.The drivers also have built-in positioning functions that enable relatively complex positioning operations. The motor shaft diameters are ⌀25 mm and rated thrust is 28 N to 118 N.

基本スペック

  • Rated thrust

    28 N to 118 N

  • Shaft diameter

    φ25 mm

  • Maximum stroke

    1041 mm

Click to see details of this product

  • カタログ・技術資料ダウンロード
  • 2D CADダウンロード

SHM-35 + SHD-16

These new cylindrical linear motor systems were designed to enable driving with the simplest possible system. They detect position using flux generated by the shaft, so they can operate without external position sensors.The drivers also have built-in positioning functions that enable relatively complex positioning operations. The motor shaft diameters are ⌀35 mm and rated thrust is 150 N.

基本スペック

  • Rated thrust

    150 N

  • Shaft diameter

    φ35 mm

  • Maximum stroke

    1253 mm

Click to see details of this product

  • カタログ・技術資料ダウンロード
