Product Information

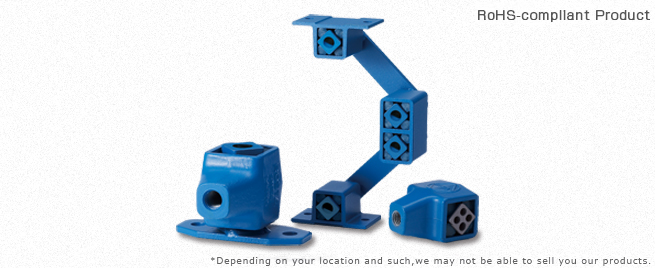

Rocking Mountings

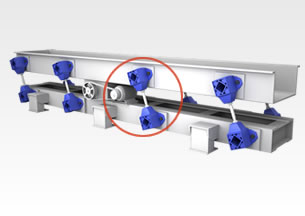

Oscillating conveyors and vibration sieving machines constructed with suspension units

The rocking mounts and rocking drive heads that are used to build oscillating conveyors and vibration sieving machines can be constructed with suspension units. AU models of rocking mount can be directly mounted by flange to an oscillating conveyor of the exciting type that uses a crank motion, for example. Rod end RST models smoothly transmit the rocking motion caused by that cranking motion. Use them in combination to build the optimal design. We also provide the AB models, a mount for oscillating conveyors and vibration sieving machines that use vibrating motors. AB models can absorb vibration going to the outside, such as to floors, while they efficiently transmit the exciting force generated by the vibrating motor.

  • 製品一覧
  • アプリケーション
  • ムービー

AU Models

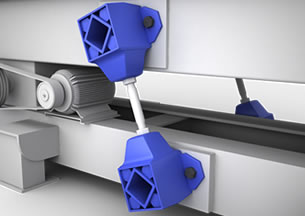

AU models of rocking mount can be directly mounted by flange to an oscillating conveyor of the exciting type that uses a crank motion, for example. Rod end RST models smoothly transmit the rocking motion caused by that cranking motion. Use them in combination to build the optimal design.

基本スペック

  • Torque load range

    100 N to 5000 N

  • Operating temperature

    -40℃ to 80℃

Click to see details of this product

  • カタログ・技術資料ダウンロード

RST Models

AU models of rocking mount can be directly mounted by flange to an oscillating conveyor of the exciting type that uses a crank motion, for example.Rod end RST models smoothly transmit the rocking motion caused by that cranking motion. Use them in combination to build the optimal design.

基本スペック

  • Torque load range

    400 N to 27000 N

  • Operating temperature

    -40℃ to 80℃

Click to see details of this product

  • カタログ・技術資料ダウンロード

AB Models

These can be used as mounts for oscillating conveyors and vibration sieving machines that use vibrating motors.These combinations are very soft in the vertical direction, enabling flexible support. By using multiple units in parallel, even high capacity loads can be handled. AB models can also absorb vibration going to the outside, such as to floors, while they efficiently transmit the exciting force generated by the vibrating motor.

基本スペック

  • Torque load range

    160 N to 10000 N

  • Operating temperature

    -40℃ to 80℃

Click to see details of this product

  • カタログ・技術資料ダウンロード
