Hollow-shaft Speed Changers and Reducers
High-efficiency, compact hollow-shaft worm reducer modules

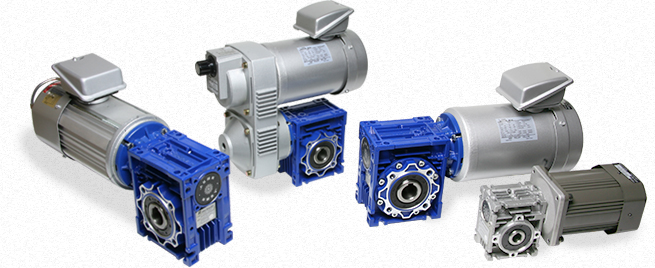

This series uses high-efficiency, compact hollow-shaft worm reducers as central modules that are combined with motors and belt-type stepless speed changers. They come in the geared motor RWM model, which combines a speed reducer with a motor, the RWM BS model, which uses a brake motor for its motor, and the RWP model, which includes a belt-type speed changer unit between the speed reducer and motor and can control speed. They all use B14 flange motors, so they are very compact.
- 製品一覧
These are low-output hollow-shaft geared motors for motor outputs of 60 W and 90 W.They use hollow-shaft speed reducers and do not require transmission components such as couplings, chains, or sprockets, so virtually nothing rotating is exposed to the outside, and high safety is assured without use of a safety cover.
- Motor output
60 W to 90 W （4-pole）
- Power supply voltage
Three-phase 200 V/50 Hz, 200 or 220 V/60 Hz
- Speed reduction ratios
1/10, 1/20, 1/30
These are hollow-shaft geared motors for motor outputs of 0.2 kW to 1.5 kW (4-pole).They use hollow-shaft speed reducers and do not require transmission components such as couplings, chains, or sprockets, so virtually nothing rotating is exposed to the outside, and high safety is assured without use of a safety cover. And since special long-life oil is used in the speed reducer, oil changes are unnecessary. The sealed construction also allows flexibility in mounting on top, bottom, left or right.
- Motor output
0.2 kW to 1.5 kW （4-pole）
- Power supply voltage
Three-phase 200 V/50 Hz, 200 or 220 V/60 Hz
- Speed reduction ratios
1/10, 1/20, 1/30, 1/40, 1/50, 1/60
These are hollow-shaft geared motors with brakes that use spring-actuated brake motors for the motor part of the RWM.The brake is a spring-actuated type that brakes or holds instantly when power is cut off, with a release lever to manually release the brake. A small power supply is built into the terminal box, so wiring and handling are easy.
- Motor output
0.2 kW to 1.5 kW （4-pole）
- Power supply voltage
Three-phase 200 V/50 Hz, 200 or 220 V/60 Hz
- Speed reduction ratios
1/10, 1/20, 1/30, 1/40, 1/50, 1/60
These models add a belt-type stepless speed changer to an RWM hollow-shaft geared motor. They are about 30% lighter and 20% smaller than our previous belt-type stepless speed changer (0.4-kW model).They can also operate at high torque while at low speeds (compared to the 0.4-kW model), not a traditional strength of inverters.
- Motor output
0.2 kW to 1.5 kW （4-pole）
- Power supply voltage
Three-phase 200 V/50 Hz, 200 or 220 V/60 Hz
- Speed reduction ratios
1/10, 1/20, 1/30, 1/40, 1/50, 1/60
