ETP-A Models Specifications

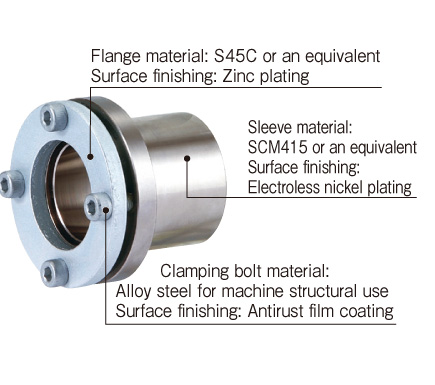

ETP-A Models

[Specifications]

ModelRated torque [N・m]Rated radial load [N]Shaft contact pressure [N/mm2Hub contact pressure [N/mm2Tightening torque[N・m]Moment of inertia [kg・m2Mass [kg]
ETP-A-15552500908060.018 × 10-30.1
ETP-A-191005800908080.046 × 10-30.17
ETP-A-201256600908080.046 × 10-30.16
ETP-A-221358200908080.065 × 10-30.19
ETP-A-242009800908080.067 × 10-30.2
ETP-A-2525010600908080.071 × 10-30.19
ETP-A-2830013100908080.12 × 10-30.26
ETP-A-3042014700908080.14 × 10-30.29
ETP-A-3242016300908080.20 × 10-30.35
ETP-A-3565018800908080.25 × 10-30.4
ETP-A-3875021200908080.31 × 10-30.43
ETP-A-4094022800908080.44 × 10-30.55
ETP-A-4294024400908080.47 × 10-30.55
ETP-A-451290269009080130.69 × 10-30.71
ETP-A-481570293009080130.83 × 10-30.78
ETP-A-501900309009080131.05 × 10-30.86
ETP-A-552500350009080131.43 × 10-31.06
ETP-A-603400391009080132.15 × 10-31.37
ETP-A-653500431009080133.10 × 10-31.67
ETP-A-705200472009080324.08 × 10-32.04
ETP-A-756300513009080325.50 × 10-32.42
ETP-A-808800550009080328.10 × 10-32.64
ETP-A-90110006000090803212.2 × 10-33.54
ETP-A-100155006200090803219.9 × 10-34.8

*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.

*The rated torque, rated thrust, shaft contact pressure, and hub contact pressure values given are measured values at a temperature of 20°C.

*ETP-A-75, 80, 90, and 100 are made to order.

[Dimensions]

Unit [mm]
ModeldDD1LL1L2L3L4M
ETP-A-15152337.517283355.43-M5×10
ETP-A-191928452134395.56.93-M5×12
ETP-A-202028452235405.56.43-M5×12
ETP-A-222232492235405.56.44-M5×12
ETP-A-242434492538435.56.44-M5×12
ETP-A-252534492741465.56.94-M5×12
ETP-A-282839552943485.56.94-M5×12
ETP-A-303041573246515.56.94-M5×12
ETP-A-3232436034505577.44-M5×14
ETP-A-35354762.537535877.46-M5×14
ETP-A-3838506541576277.46-M5×14
ETP-A-404053704360657.58.46-M5×16
ETP-A-424255704562677.58.46-M5×16
ETP-A-4545597749667288.46-M6×16
ETP-A-4848628052707688.46-M6×16
ETP-A-505065835372788.59.46-M6×18
ETP-A-5555718858778399.48-M6×18
ETP-A-606077956485911010.48-M6×20
ETP-A-6565841026890969.510.98-M6×20
ETP-A-70709011372941029.510.96-M8×20
ETP-A-7575951188510811611116-M8×22
ETP-A-80801001239011412211116-M8×22
ETP-A-909011213510012713512.512.58-M8×25
ETP-A-10010012514811013914713.5138-M8×25

*L1 and L2 are dimensions when the ETP-CLASSIC is mounted. These values may vary slightly depending on the fi t tolerances of the shaft diameter and internal hub diameter.

*The nominal diameter of the clamping bolt M is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.

ETP-A B Types

[Specifications]

ModelRated torque [N・m]Rated radial load [N]Shaft contact pressure [N/mm2Hub contact pressure [N/mm2Tightening torque [N・m]Moment of inertia [kg・m2Mass [kg]
ETP-A-15-B552500908060.018 × 10-30.1
ETP-A-19-B1005800908080.046 × 10-30.17
ETP-A-20-B1256600908080.046 × 10-30.16
ETP-A-22-B1358200908080.065 × 10-30.19
ETP-A-24-B2009800908080.067 × 10-30.2
ETP-A-25-B25010600908080.071 × 10-30.19
ETP-A-28-B30013100908080.12 × 10-30.26
ETP-A-30-B42014700908080.14 × 10-30.29
ETP-A-32-B42016300908080.20 × 10-30.35
ETP-A-35-B65018800908080.25 × 10-30.4
ETP-A-38-B75021200908080.31 × 10-30.43
ETP-A-40-B94022800908080.44 × 10-30.55
ETP-A-42-B94024400908080.47 × 10-30.55
ETP-A-45-B1290269009080130.69 × 10-30.71
ETP-A-48-B1570293009080130.83 × 10-30.78
ETP-A-50-B1900309009080131.05 × 10-30.86
ETP-A-55-B2500350009080131.43 × 10-31.06
ETP-A-60-B3400391009080132.15 × 10-31.37
ETP-A-65-B3500431009080133.10 × 10-31.67
ETP-A-70-B5200472009080324.08 × 10-32.04
ETP-A-75-B6300513009080325.50 × 10-32.42
ETP-A-80-B8800550009080328.10 × 10-32.64
ETP-A-90-B110006000090803212.2 × 10-33.54
ETP-A-100-B155006200090803219.9 × 10-34.8

*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.

*The rated torque, rated thrust, shaft contact pressure, and hub contact pressure values given are measured values at a temperature of 20°C.

*ETP-A-75, 80, 90, and 100-B are made to order.

[Dimensions]

Unit [mm]
ModeldDD1LL1L2L3L4M
ETP-A-15-B152337.5172832.555.43-M5×10
ETP-A-19-B192845213438.55.56.93-M5×12
ETP-A-20-B202845223539.55.56.43-M5×12
ETP-A-22-B223249223539.55.56.44-M5×12
ETP-A-24-B243449253842.55.56.44-M5×12
ETP-A-25-B253449274145.55.56.94-M5×12
ETP-A-28-B283955294347.55.56.94-M5×12
ETP-A-30-B304157324650.55.56.94-M5×12
ETP-A-32-B324360345054.577.44-M5×14
ETP-A-35-B354762.5375357.577.46-M5×14
ETP-A-38-B385065415761.577.46-M5×14
ETP-A-40-B405370436064.57.58.46-M5×16
ETP-A-42-B425570456266.57.58.46-M5×16
ETP-A-45-B45597749667188.46-M6×16
ETP-A-48-B48628052707588.46-M6×16
ETP-A-50-B5065835372778.59.46-M6×18
ETP-A-55-B55718858778299.48-M6×18
ETP-A-60-B6077956485901010.48-M6×20
ETP-A-65-B65841026890959.510.98-M6×20
ETP-A-70-B7090113729499.59.510.96-M8 × 20
ETP-A-75-B759511885108113.511116-M8 × 22
ETP-A-80-B8010012390114119.511116-M8 × 22
ETP-A-90-B90112135100127132.512.512.58-M8 × 25
ETP-A-100-B100125148110139144.513.5138-M8 × 25

*L1 and L2 are dimensions when the ETP-CLASSIC is mounted. These values may vary slightly depending on the fi t tolerances of the shaft diameter and internal hub diameter.

*The nominal diameter of the clamping bolt M is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.

ETP-A C Types

[Specifications]

ModelRated torque [N・m]Rated thrust [N]Shaft contact pressure [N/mm2Hub contact pressure [N/mm2Tightening torque [N・m]Moment of inertia [kg・m2Mass [kg]
ETP-A-15-C415000908060.018×10-30.10
ETP-A-19-C757400908080.046×10-30.17
ETP-A-20-C948700908080.046×10-30.16
ETP-A-25-C18814000908080.071×10-30.19
ETP-A-30-C31519000908080.14×10-30.29
ETP-A-35-C48826000908080.25×10-30.40
ETP-A-40-C70533000908080.44×10-30.55
ETP-A-45-C968400009080130.69×10-30.71
ETP-A-50-C1426530009080131.05×10-30.86

*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.

*The rated torque, rated thrust, shaft contact pressure, and hub contact pressure values given are measured values at a temperature of 20°C.

[Dimensions]

Unit [mm]
ModeldDD1LL1L2L3L4M
ETP-A-15-C152337.517283355.43-M5×10
ETP-A-19-C1928452134395.56.93-M5×12
ETP-A-20-C2028452235405.56.43-M5×12
ETP-A-25-C2534492741465.56.94-M5×12
ETP-A-30-C3041573246515.56.94-M5×12
ETP-A-35-C354762.537535877.46-M5×14
ETP-A-40-C4053704360657.58.46-M5×16
ETP-A-45-C45597749667288.46-M6×16
ETP-A-50-C5065835372788.59.46-M6×18

*L1 and L2 are dimensions when the ETP-CLASSIC is mounted. These values may vary slightly depending on the fi t tolerances of the shaft diameter and internal hub diameter.

*The nominal diameter of the clamping bolt M is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.

ETP-A S Types

[Specifications]

ModelRated torque [N・m]Rated thrust [N]Shaft contact pressure [N/mm2Hub contact pressure [N/mm2Tightening torque [N・m]Moment of inertia [kg・m2Mass [kg]
ETP-A-19-S535000908080.044×10-30.15
ETP-A-20-S756000908080.042×10-30.14
ETP-A-25-S12010000908080.065×10-30.17
ETP-A-30-S21014000908080.12×10-30.24
ETP-A-35-S33019000908080.22×10-30.32
ETP-A-40-S50026000908080.37×10-30.46
ETP-A-45-S700310009080130.56×10-30.57
ETP-A-50-S1000400009080130.85×10-30.72

*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.

*The rated torque, rated thrust, shaft contact pressure, and hub contact pressure values given are measured values at a temperature of 20°C.

[Dimensions]

Unit [mm]
ModeldDD1LL1L2L3L4M
ETP-A-19-S1928451326315.56.93-M5×12
ETP-A-20-S2028451528335.56.43-M5×12
ETP-A-25-S2534491529345.56.94-M5×12
ETP-A-30-S3041572034395.56.94-M5×12
ETP-A-35-S354762.522384377.46-M5×14
ETP-A-40-S4053702542477.58.46-M5×16
ETP-A-45-S45597728455188.46-M6×16
ETP-A-50-S5065832645518.59.46-M6×18

*L1 and L2 are dimensions when the ETP-CLASSIC is mounted. These values may vary slightly depending on the fi t tolerances of the shaft diameter and internal hub diameter.

*The nominal diameter of the clamping bolt M is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.

ETP-A R Types

[Specifications]

ModelRated torque [N・m]Rated radial load [N]Shaft contact pressure [N/mm2Hub contact pressure [N/mm2Tightening torque [N・m]Moment of inertia [kg・m2Mass [kg]
ETP-A-15-R45250090704.50.018 × 10-30.1
ETP-A-20-R100660090704.50.046 × 10-30.16
ETP-A-25-R2101060090704.50.071 × 10-30.19
ETP-A-30-R3501470090704.50.142 × 10-30.29
ETP-A-35-R5001880090704.50.250 × 10-30.4
ETP-A-40-R7502280090704.50.441 × 10-30.55
ETP-A-45-R11002690090707.80.686 × 10-30.71
ETP-A-50-R15503090090707.81.045 × 10-30.86

*The rated torque values are those when the thrust is zero and the rated thrust values are those when the torque is zero.

*The rated torque, rated thrust, shaft contact pressure, and hub contact pressure values given are measured values at a temperature of 20°C.

[Dimensions]

Unit [mm]
ModeldDD1LL1L2L3L4M
ETP-A-15-R152337.517283255.44-M5×10
ETP-A-20-R2028452236405.56.45-M5×12
ETP-A-25-R2534492741455.56.97-M5×12
ETP-A-30-R3041573246505.36.97-M5×12
ETP-A-35-R354762.537535777.49-M5×14
ETP-A-40-R40537043606488.49-M5×16
ETP-A-45-R45597749667088.49-M6×16
ETP-A-50-R5065835372768.59.49-M6×18

*L1 and L2 are dimensions when the ETP-CLASSIC is mounted. These values may vary slightly depending on the fi t tolerances of the shaft diameter and internal hub diameter.

*The nominal diameter of the clamping bolt M is equal to the quantity minus the nominal diameter of the screw threads times the nominal length.
