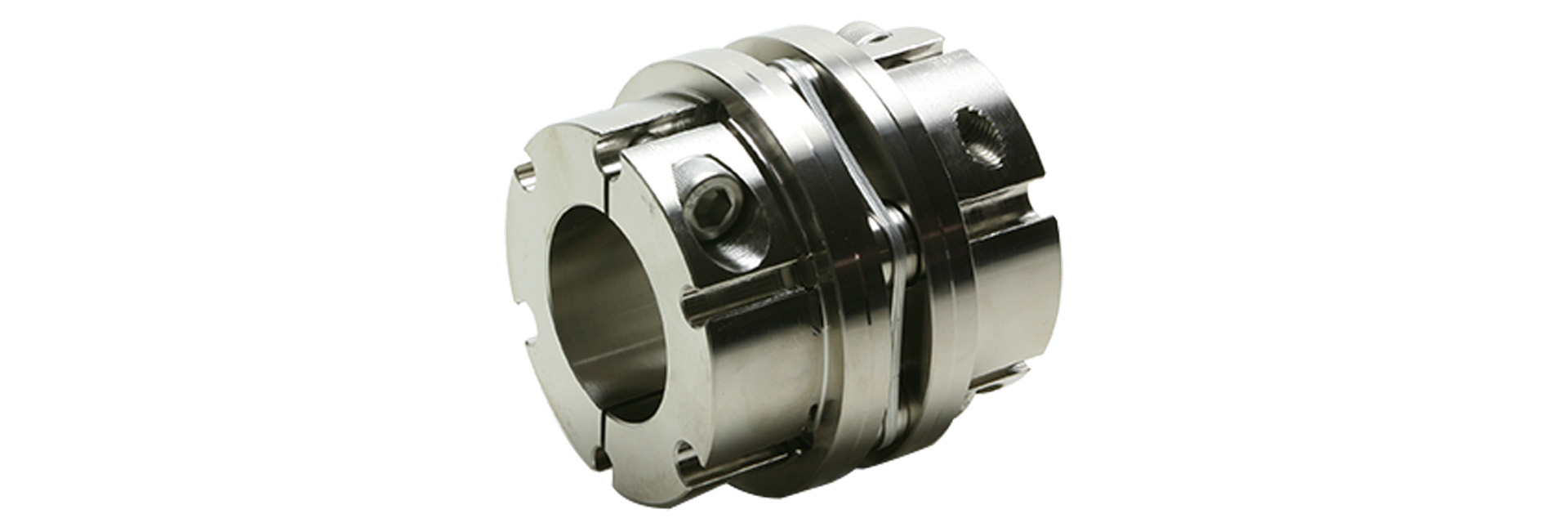

SFF [SS-CC/CF] Simplified Cleaning Compatible Type_52

This simplified cleanroom-compatible version of the SFF-model single-element coupling for servo motor drives used in feed shafts features electroless nickel plating and undergoes cleanroom cleaning, assembly, and packaging. For the clamping bolts used to secure axial force, you can choose between two types of grease: fluorinated grease and low-dust grease.

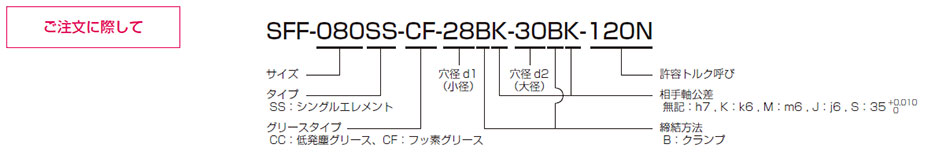

[Specifications] Clamp-fastening type

Model	Rated Torque [N·m]	Tolerance			Maximum Rotational Speed [min⁻¹]	Torsional spring constant [N·m/rad]	Axial spring constant [N/mm]	Moment of inertia [kg·m²]	Mass [kg]	Price [JPY]
Model	Rated Torque [N·m]	Eccentricity [mm]	Angular offset [°]	Axial length [mm]	Maximum Rotational Speed [min⁻¹]	Torsional spring constant [N·m/rad]	Axial spring constant [N/mm]	Moment of inertia [kg·m²]	Mass [kg]	Price [JPY]
SFF-040SS-□-□B-□B-8N	8	0.02	1	±0.2	18,000	15,000	174	0.03×10⁻³	0.17	-
SFF-050SS-□-□B-□B-16N	16	0.02	1	±0.3	18,000	32,000	145	0.10×10⁻³	0.36	-
SFF-060SS-□-□B-□B-40N	40	0.02	1	±0.3	18,000	104,000	399	0.22×10⁻³	0.52	-
SFF-060SS-□-□B-□B-50N	50	0.02	1	±0.3	18,000	104,000	399	0.23×10⁻³	0.49	-
SFF-070SS-□-□B-□B-65N	65	0.02	1	±0.5	18,000	240,000	484	0.40×10⁻³	0.72	-
SFF-080SS-□-□B-□B-120N	120	0.02	1	±0.5	17,000	310,000	546	1.25×10⁻³	1.40	-
SFF-090SS-□-□B-□B-150N	150	0.02	1	±0.6	15,000	520,000	321	1.58×10⁻³	1.53	-
SFF-100SS-□-□B-□B-250N	250	0.02	1	±0.65	13,000	740,000	540	3.27×10⁻³	2.53	-

The maximum rotational speed does not take dynamic balance into account.
The torsional spring constant value refers to the value for a single element.
The moment of inertia and mass are based on the maximum bore diameter.

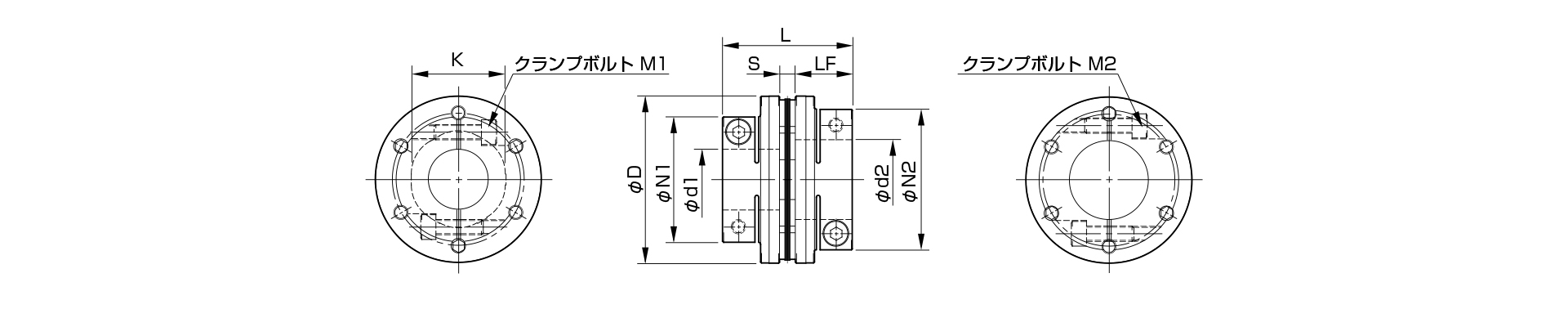

[Dimensions] Clamp-type

三木プーリのサーボフレックスシリーズSFFモデルSSタイプ（クリーン仕様）金属板ばねカップリング寸法図外形寸法および主要部寸法を示す寸法図

SFF-SS Specifications

Model	d1	d2	D	L	N1・N2	LF	S	K	M1・M2	Tightening torque [N·m]
Model	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	Quantity - Nominal	CC Low-Dust	CF Fluorine
SFF-040SS-□-□B-□B-8N	8–16	8–16	38	38.9	33	17.5	3.9	17	2-M4	4.5	4.5
SFF-050SS-□-□B-□B-16N	10–19	10–19	48	48.4	42	21.5	5.4	20	2-M5	9	8.5
SFF-060SS-□-□B-□B-40N	12–22	12–22	58	53.4	44	24	5.4	32	2-M6	16	16
	-	24–28	58	53.4	48	24	5.4	32	2-M5	9	8.5
	-	30	58	53.4	52	24	5.4	32	2-M5	9	8.5
SFF-060SS-□-□B-□B-50N	24–28	24–28	58	53.4	48	24	5.4	32	2-M5	9	8.5
	30	30	58	53.4	52	24	5.4	32	2-M5	9	8.5
SFF-070SS-□-□B-□B-65N	18–19	18–25	68	55.9	47	25	5.9	38	2-M6	16	16
	-	28–35	68	55.9	56	25	5.9	38	2-M6	16	16
SFF-080SS-□-□B-□B-120N	28–35	28–35	78	67.7	70	30	7.7	42	2-M8	37	45
	38	38	78	67.7	74	30	7.7	42	2-M8	37	45
SFF-090SS-□-□B-□B-150N	35–42	35–42	88	68.3	74	30	8.3	50	2-M8	37	45
SFF-100SS-□-□B-□B-250N	38–48	38–48	98	90.2	84	40	10.2	56	2-M10	68	65

The designation for M1 and M2 clamp bolts is "quantity-thread size," where the quantity refers to the number of bolts on one side of the hub.
Please choose from two types of grease for clamping bolts used to secure axial force: low-dust grease or fluorinated grease.

[Standard Hole Diameter] Clamp-type fastening

SFF Standard Hole Diameter Chart

Model	Standard Hole Diameter d1・d2 [mm]
Model	8	9	9.525	10	11	12	14	15	16	17	18	19	20	22	24	25	28	30	32	35	38	40	42	45	48
SFF-040SS-□-□B-□B-8N	●	●	●	●	●	●	●	●	●
SFF-050SS-□-□B-□B-16N				●	●	●	●	●	●	●	●	●
SFF-060SS-□-□B-□B-40N						●	●	●	●	●	●	●	●	●	●	●	●
SFF-060SS-□-□B-□B-50N															●	●	●	●
SFF-070SS-□-□B-□B-65N											●	●	●	●	●	●	●	●	●	●
SFF-080SS-□-□B-□B-120N																	●	●	●	●	●
SFF-090SS-□-□B-□B-150N																				●	●	●	●
SFF-100SS-□-□B-□B-250N																						●	●	●	●

The hole diameters in the fields marked with a ● are the standard hole diameters.
