Product Information

SE/SE-I Models Specifications

SE/SE-I Models

[Specifications]

ModelLoad range F [N]Max. displacement S1 [mm]Max. displacement S2 [mm]Mass [kg]
SESE-I
SE-110~9640300.20-
SE-15・SE-I-150~13550400.400.40
SE-18・SE-I-180~35050400.600.70
SE-27・SE-I-270~81065501.702.10
SE-38・SE-I-400~150088703.603.80
SE-450~2650113906.40-

* The load range is for the normal position.

 Hard position load range ≒ 1.25 x normal position load range

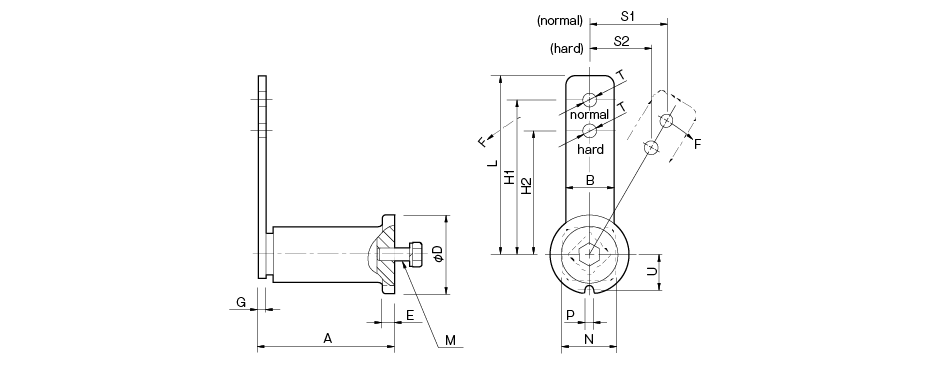

[Dimensions]

Unit [mm]
ModelABDEGH1H2LNPUTM
SE-1151+1-0.520356580609022816.58.5M6×20
SE-15・SE-I-1564+1-0.525458510080112.5308.520.810.5M8×25
SE-18・SE-I-1879+1.5-0.5305810.5710080115358.525.310.5M10×30
SE-27・SE-I-27108+2-0.550781581301001555210.534.312.5M12×40
SE-38・SE-I-40140+2-0.560(70)95(100)151017514020566(70)12.5(12)42.0(41.5)20.5M16×40
SE-45200+2-0.57011518122251802608012.552.020.5M20×50

* The dimension in parentheses ( ) for SE-38/SE-I-40 is the SE-I-40 dimension.
