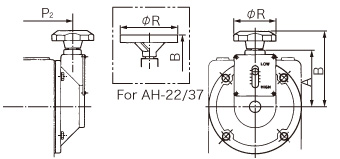

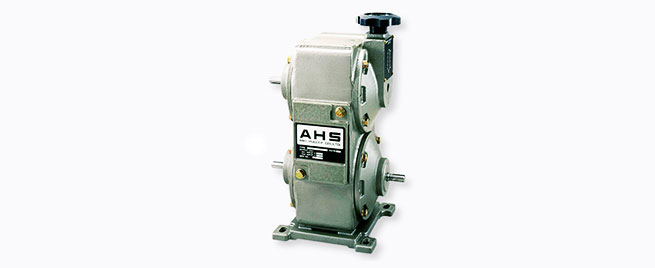

The handle can be attached in the vertical or horizontal directions.
In addition to the standard handle, there is also an optional SD model handle available that comes equipped with a built-in rotation speed indicator. (The handle can only actually be used when attached sideways.)

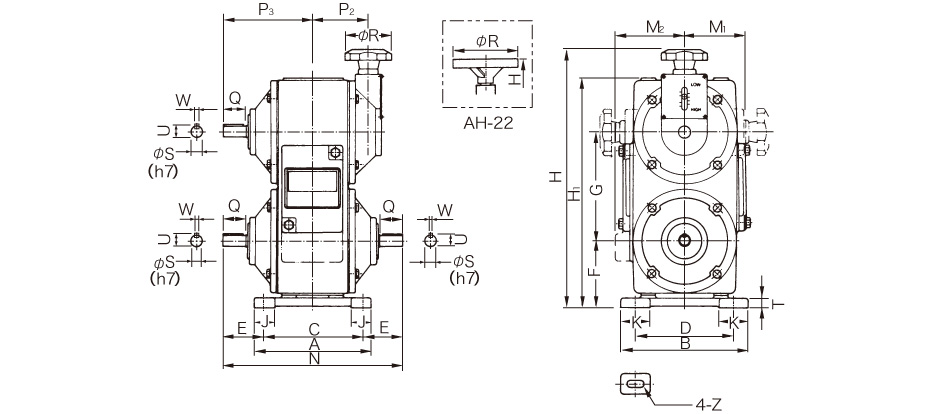

[Specifications/Dimensions]
Model | A | B | P2 | R | Handle speed |
---|---|---|---|---|---|
AH-02 | 100 | 134 | 80 | 80 | 11 |
AH-04 | 110 | 144 | 92 | 80 | 13 |
AH-07 | 121 | 155 | 106 | 80 | 14 |
AH-15 | 140 | 174 | 121 | 80 | 15 |
AH-22 | 170 | 220 | 133 | 160 | 17 |
AH-37 | 170 | 220 | 133 | 160 | 17 |

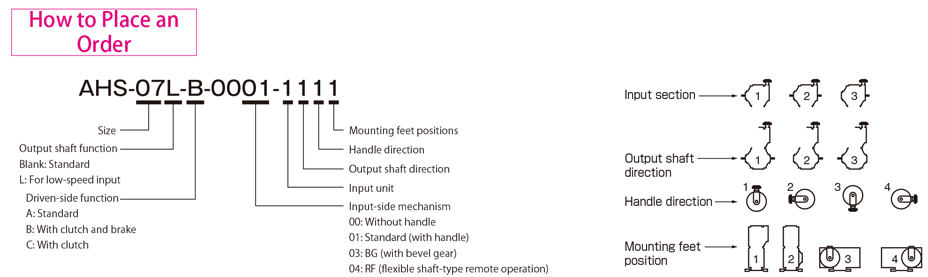

Specify model 00 if detaching the standard handle and using a different handle instead or using remote control operation using a sprocket universal joint, etc.
[Specifications/Dimensions]
Model | A | B | D1 | D2 | P2 | Handle speed |
---|---|---|---|---|---|---|
AH-02 | 101 | 121 | 10 | 15 | 80 | 11 |
AH-04 | 111 | 131 | 10 | 15 | 92 | 13 |
AH-07 | 122 | 142 | 10 | 15 | 106 | 14 |
AH-15 | 141 | 161 | 10 | 16 | 121 | 15 |
AH-22 | 171 | 191 | 10 | 16 | 133 | 17 |
AH-37 | 171 | 191 | 10 | 16 | 133 | 17 |

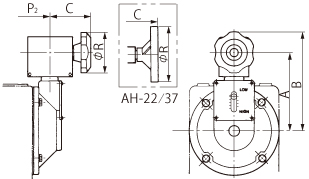

This model uses a right-angle handle that attaches to a beveled gear in the handle section. This model also accepts the standard handle as well as an SD handle (handle equipped with a built-in rotation speed indicator).
[Specifications/Dimensions]
Model | A | B | P2 | C | R | Handle speed |
---|---|---|---|---|---|---|
AH-02 | 150 | 190 | 80 | 80 | 80 | 11 |
AH-04 | 160 | 200 | 92 | 80 | 80 | 13 |
AH-07 | 170 | 210 | 106 | 80 | 80 | 14 |
AH-15 | 190 | 230 | 121 | 80 | 80 | 15 |
AH-22 | 220 | 300 | 133 | 100 | 160 | 17 |
AH-37 | 220 | 300 | 133 | 100 | 160 | 17 |

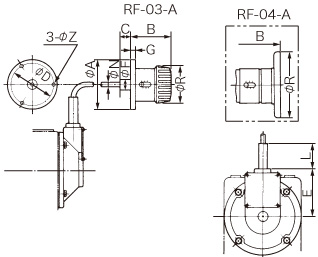

The unit can be operated by remote control at low cost.
*There are three different lengths for standard flexible shafts, 1000 mm, 1600 mm, and 2500 mm.
*Set the radius of curvature to R300 or above.If flexible shafts
cannot be routed easily, place guides, etc.
[Specifications/Dimensions]
Model | A | B | C | D | E | F | G | L | N | R | Z | Handle speed | RF model |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AH-02 | 118 | 93 | 25 | 100 | 100 | 25 | 12 | 70 | 14 | 86 | 7 | 11 | RF-03-A |
AH-04 | 110 | 13 | |||||||||||
AH-07 | 121 | 120 | 18 | 160 | 14 | RF-04-A | |||||||
AH-15 | 140 | 15 | |||||||||||
AH-22 | 170 | 17 | |||||||||||
AH-37 |
