ANB Models Specifications

ANB

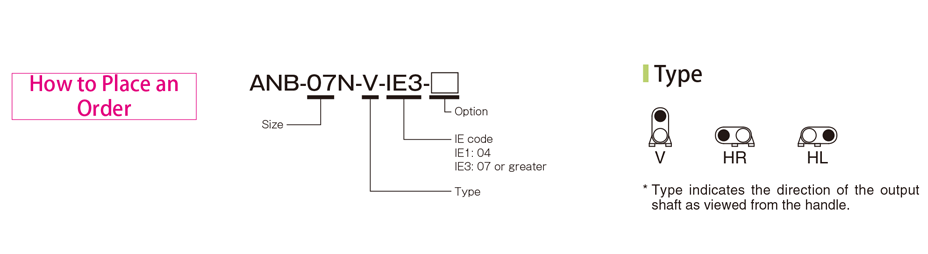

[Specifications1]

Model	Motor output[kW]	Poles	Power supply Voltage[V]/Frequency[Hz]	Speed change ratio	Speed changer in use		Belt model in use	Rated output shaft O.H.L. [N]	Mass[kg]
Model	Motor output[kW]	Poles	Power supply Voltage[V]/Frequency[Hz]	Speed change ratio	Motor side speed changer model	Machine side speed changer model	Belt model in use	Rated output shaft O.H.L. [N]	Mass[kg]
ANB-04N	0.4	4	3-phase 200/50、200・220/60	1:4	AK-106-AN-14N	PE-125-AN-15H	1422V236S	480	27.5
ANB-07N	0.75	4	3-phase 200/50、200・220/60	1:4	AK-125-AN-19N	PE-150N-AN-18H	1422V270S	700	47
ANB-15N	1.5	4	3-phase 200/50、200・220/60	1:4	AK-150-AN-24N	PE-180N-AN-22H	1922V338S	900	75

※ Totally enclosed fan cooled motors in conformance with JIS C 4210 for 0.4kW motors, and JIS C 4213 for motors over 0.75 kW.　

[Specifications2]

Model	Electromagnetic Clutches & Brakes								Output shaft revolution speed[min^-1] and output shaft torque[N･m]
	Size	Dynamic friction torque Td [N･m]	Static friction torque Ts[N･m]	Excitation voltage[V]	Wattage[W]	Current[A]	Resistance[Ω]	Heat resistance class	50Hz	60Hz
	Size	Dynamic friction torque Td [N･m]	Static friction torque Ts[N･m]	Excitation voltage[V]	Wattage[W]	Current[A]	Resistance[Ω]	Heat resistance class	500～2000	600～2400
ANB-04N	08	10	11	DC 24	15	0.63	38	B	6.6～1.6	5.3～1.3
ANB-07N	10	20	22	DC 24	20	0.83	29	B	12.2～3	9.8～2.4
ANB-15N	12	40	45	DC 24	25	1.09	23	B	24.8～6.2	19.9～5

※If you use the device for a continuous of high-frequency operation, you need to consider how to prevent the temperature from rising.Please consult with us.

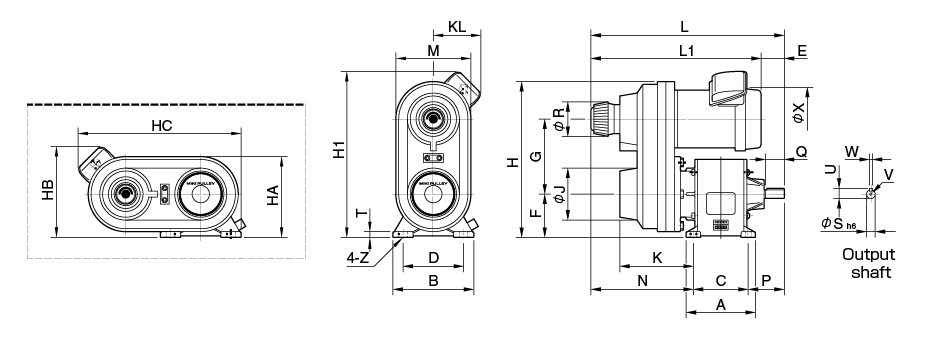

[Dimensions]

Unit [mm]

Model	ANB-04N	ANB-07N	ANB-15N
A	150	170	210
B	160	195	250
C	120	140	180
D	130	150	200
E	28	45.5	77.5
F	90	110	120
G	160	186	239
H	328	391	469
H1	359	412	484
J	108	134	155
K	171.5	172	203.5
L	401	463	540
L1	373	417.5	462.5
M	158	190	220
N	223	245	261.5
P	58	78	98.5
Q	30	40	50
R	70	80	80
T	12	15	15
S	14	19	24
U	16	21.5	27
W	5	6	8
V	M4length8	M6length11	M6length11
X	131	162	187
Z	9.5×16	11.5×25	12×30
KL	109	116.5	125
HA	169	205	230
HB	199	226.5	245
HC	349	400	489

Options of ANB Models

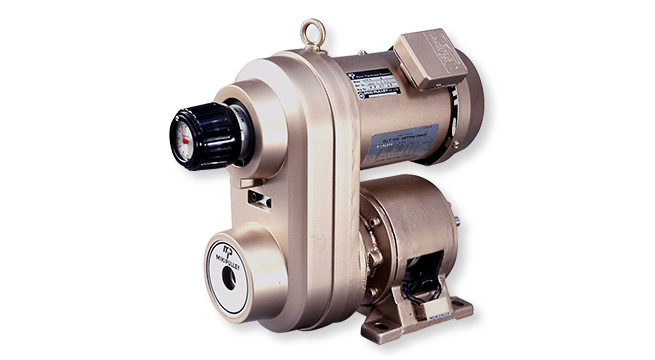

Weight Type Index SD

A rotation speed indicator (SD model) can be built in the standard handle part.

Unit [mm]

Model	Number of handle turns	SD model for AN
AN□-02-SD	5	SD-53B-B544
AN□-04-SD	6	SD-53B-B545
AN□-07-SD	7	SD-53B-B546
AN□-15-SD	8.25	SD-53B-B547
AN□-22-SD	8.25	SD-53B-B548
AN□-37-SD	8.75	SD-53B-B549

*A red zone corresponding to the number of turns of the handle is provided for the SD model for AN.

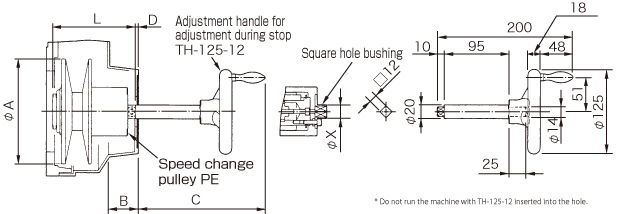

Handle Mounting Square Hole for Adjustment during Stop TH

Fine adjustments and positioning can be performed easily by using the handle inserted to this hole during machine stop.
Mount the adjustment handle for adjustment during stop TH to the square hole bushing of the PE model speed change pulley to perform fine adjustments and positioning.

* Please order an adjustment handle for adjustment during stop (TH-125-12) separately.

[When the AN unit is mounted]

Unit [mm]

Model	A	B	C	D	L	X
AN□-02-TH	106	40	188	2	101	20
AN□-04-TH	125	44	188	2	122	20
AN□-07-TH	155	42	188	2	124	20
AN□-15-TH	185	53	185	5	151	20
AN□-22-TH	185	57	188	2	164	20
AN□-37-TH	216	74	189	1	175	20

[When the ACW unit is mounted]

Unit [mm]

Model	A	B	C	D	L	X
ACW-02PMN-TH	106	57	207	-17	136.5	20
ACW-04PMN-TH	125	49	198.5	-8.5	137.5	34
ACW-07PMN-TH	155	53	202	-12	150	20
ACW-15PMN-TH	185	60	197.5	-7.5	170.5	20

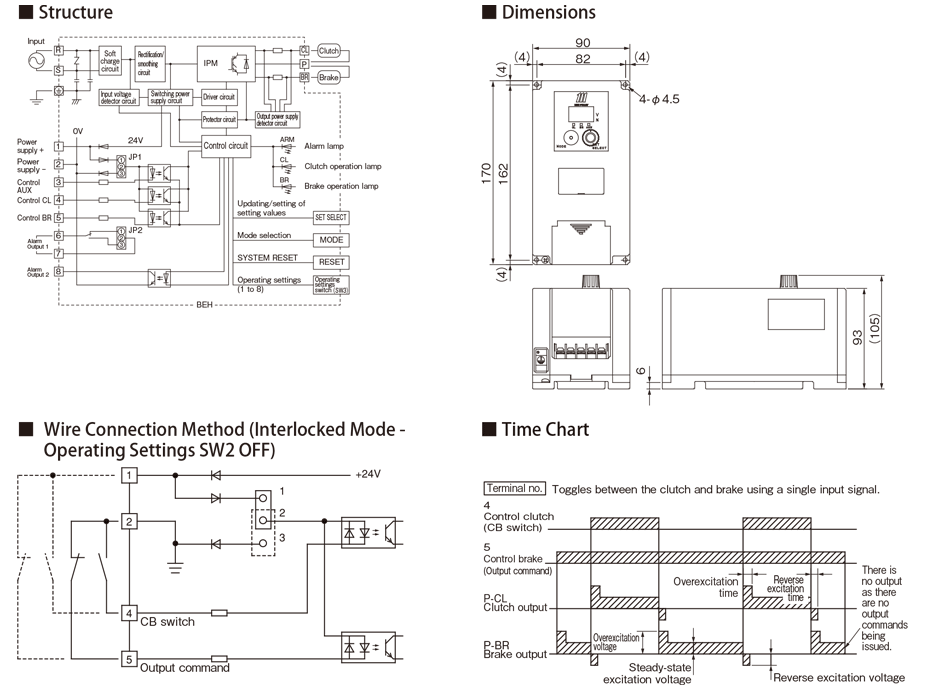

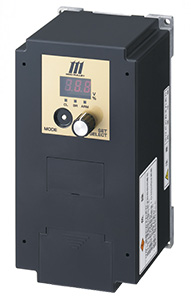

Electromagnetic Clutch and Brake Power Supply Unit BEH

Just connect the device to the AC outlet power supply (100/200 VAC) to receive the 24 VDC excitation power supply necessary for the electromagnetic clutch and brake. In particular, a combination mode to interlock the electromagnetic clutch and the electromagnetic brake enables high-accuracy and high-speed operation. The highperformance power supply also includes an auto-tuning function to automatically detect the connected electromagnetic clutch and brake and set the optimal operating conditions, as well as a variety of protection functions; for example, wiring, connection, and setting errors are indicated by an alarm sound to allow the user to easily remove the cause of the error.
