ANW (NHN/PMN) Types

ダウンロード

Features of ANW (NHN/PMN) Types

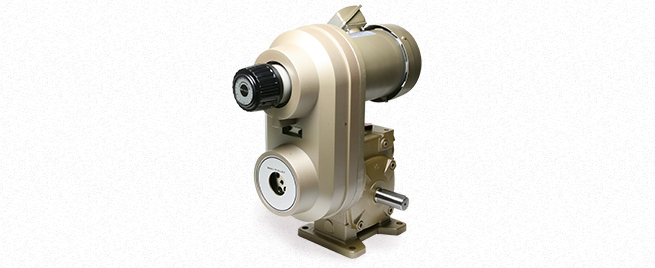

These models combine ANS model speed changers with motors and worm reducers. The appropriate output RPM is obtained using the speed change mechanism.There is a full line-up of shapes, including horizontal and vertical, so installations are easy to design.

ANW (NHN/PMN) Types Specifications

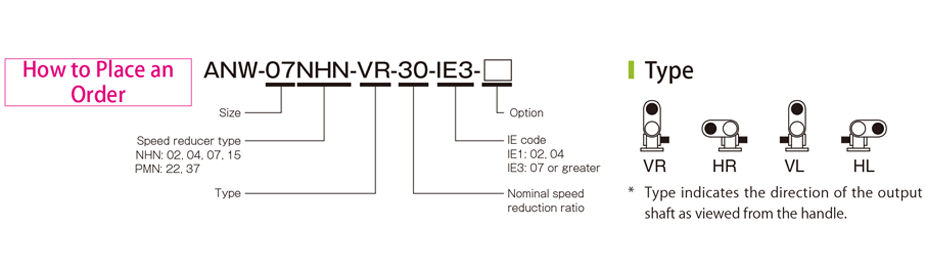

ANW (NHN/PMN) Models

ANW (NHN/PMN) Models

[Specifications1]

Model	Motor output[kW]	Poles	Power supply Voltage[V] /Frequency[Hz]	Speed change ratio	Speed changer in use		Belt model in use	Speed reducers	Mass[kg]
Model	Motor output[kW]	Poles	Power supply Voltage[V] /Frequency[Hz]	Speed change ratio	Motor side speed changer model	Machine side speed changer model	Belt model in use	Speed reducers	Mass[kg]
ANW-02NHN	0.2	4	3-phase 200/50、200・220/60	1:4	AK-90-AN-11	PE-106-AN-12H	1022V196S	NHN-50	20
ANW-04NHN	0.4	4	3-phase 200/50、200・220/60	1:4	AK-106-AN-14N	PE-125-AN-15H	1422V236S	NHN-60	27
ANW-07NHN	0.75	4	3-phase 200/50、200・220/60	1:4	AK-125-AN-19N	PE-150N-AN-18H	1422V270S	NHN-70	48
ANW-15NHN	1.5	4	3-phase 200/50、200・220/60	1:4	AK-150-AN-24N	PE-180N-AN-22H	1922V338S	NHN-80	78
ANW-22PMN	2.2	4	3-phase 200/50、200・220/60	1:4	AK-160-AN-28N	PE-190N-AN-25H	2322V341S	N-PRM-25	91
ANW-37PMN	3.7	4	3-phase 200/50、200・220/60	1:4	AK-180-AN-28N	PE-212N-AN-30H	2322V387S	N-PRM-30	129

※Totally enclosed fan cooled motors in conformance with JIS C 4210 for 0.2kW･0.4kW motors, and JIS C 4213 for motors over 0.75 kW.

[Specifications2]

Model	Frequency[Hz]	Output shaft revolution speed[min^-1] and output shaft torque[N･m] in each deceleration ratio
	Frequency[Hz]	1/10	1/20	1/30	1/40	1/50	1/60
	50	50～200	25～100	17～68	12.5～50	10～40	8.5～34
	60	60～240	30～120	20～80	15～60	12～48	10～40
ANW-02NHN	50	24.5～6.4	40.2～11.3	55.0～16.2	55.0～18.8	55.0～23.3	55.0～26.1
ANW-02NHN	60	19.6～5.1	32.1～9.1	44.8～13.0	48.9～15.0	55.0～18.6	55.0～20.9
ANW-04NHN	50	49.4～12.9	86.3～23.8	115～32.9	120～40.7	107～46.1	100～53.3
ANW-04NHN	60	39.5～10.3	69.1～19.0	92.0～26.3	109～32.5	103～36.9	95.3～42.6
ANW-07NHN	50	92.3～24.4	167～45.9	212～62.5	193～80.5	151～87.0	151～102
ANW-07NHN	60	73.8～19.5	134～36.7	173～50.0	186～64.4	145～69.6	144～81.7
ANW-15NHN	50	186～50.7	237～94.0	303～131	263～163	252～166	215～143
ANW-15NHN	60	153～40.9	224～75.8	288～106	251～131	242～159	204～143
ANW-22PMN	50	212～79.3	394～151	507～208	526～270	467～308	441～294
ANW-22PMN	60	178～66.1	331～126	430～173	502～225	448～271	420～294
ANW-37PMN	50	360～134	644～251	870～353	768～443	799～525	716～468
ANW-37PMN	60	303～112	546～210	742～294	733～369	766～475	676～468

※there are instances when output shaft torque is limited by the reducer tolerance.

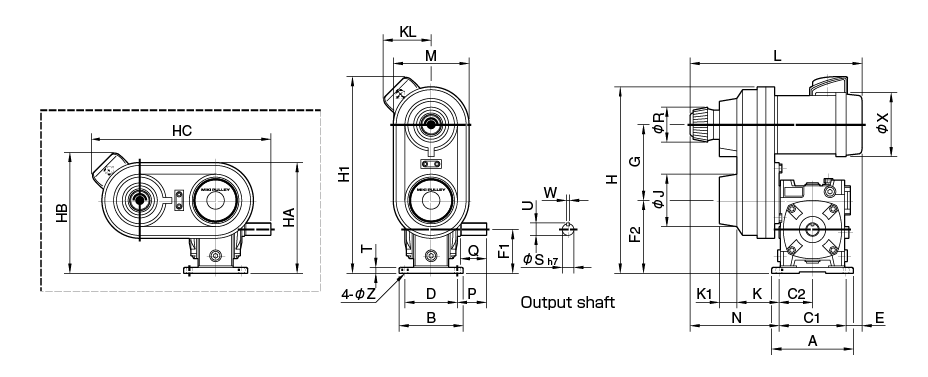

[Dimensions]

Unit [mm]

Model	ANW-02NHN	ANW-04NHN	ANW-07NHN	ANW-15NHN	ANW-22PMN	ANW-37PMN
A	142	165	190	220	270	320
B	124	143	160	170	190	230
C1	118	140	160	190	220	260
C2	59	70	80	95	110	130
D	100	115	130	140	155	180
E	56.5	48	40	44	66.5	75
F1	80	90	105	112	150	180
F2	130	150	175	192	250	300
G	140	160	186	239	230	250
H	340	389	456	541	590	677.5
H1	379	419	477	556	-	-
J	98	108	134	155	140	150
K	79	89.5	104	117.5	139	137
K1	40	44	42	53	57	74
L	345.5	373	417.5	462.5	542	627.5
M	139	158	190	220	220	255
N	171	185	217.5	228.5	255.5	292.5
P	45	52.5	65	70	92.5	100
Q	40	50	60	65	75	85
R	70	70	80	80	80	80
T	12	13	15	18	25	30
S	17	22	28	32	38	45
U	19	24.5	31	35	41	48.5
W	5	6	8	10	10	14
X	131	131	162	187	202	235
Z	10	12	14	14	15	18
KL	109	109	116.5	125	141.5	164.5
HA	200	229	270	302	360	427.5
HB	239	259	291.5	317	391	464.5
HC	344	379	432.5	504	510	568

Options of ANW (NHN/PMN) Types

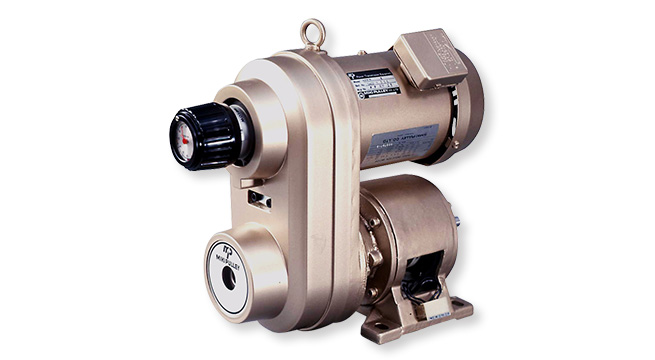

Weight Type Index SD

A rotation speed indicator (SD model) can be built in the standard handle part.

Model	Number of handle turns	SD model for AN
AN□-02-SD	5	SD-53B-B544
AN□-04-SD	6	SD-53B-B545
AN□-07-SD	7	SD-53B-B546
AN□-15-SD	8.25	SD-53B-B547
AN□-22-SD	8.25	SD-53B-B548
AN□-37-SD	8.75	SD-53B-B549

*A red zone corresponding to the number of turns of the handle is provided for the SD model for AN.

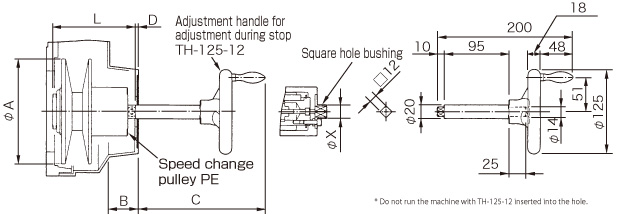

Handle Mounting Square Hole for Adjustment during Stop TH

Fine adjustments and positioning can be performed easily by using the handle inserted to this hole during machine stop.
Mount the adjustment handle for adjustment during stop TH to the square hole bushing of the PE model speed change pulley to perform fine adjustments and positioning.

* Please order an adjustment handle for adjustment during stop (TH-125-12) separately.

[When the AN unit is mounted]

Model	A	B	C	D	L	X
AN□-02-TH	106	40	188	2	101	20
AN□-04-TH	125	44	188	2	122	20
AN□-07-TH	155	42	188	2	124	20
AN□-15-TH	185	53	185	5	151	20
AN□-22-TH	185	57	188	2	164	20
AN□-37-TH	216	74	189	1	175	20

[When the ACW unit is mounted]

Model	A	B	C	D	L	X
ACW-02PMN-TH	106	57	207	-17	136.5	20
ACW-04PMN-TH	125	49	198.5	-8.5	137.5	34
ACW-07PMN-TH	155	53	202	-12	150	20
ACW-15PMN-TH	185	60	197.5	-7.5	170.5	20

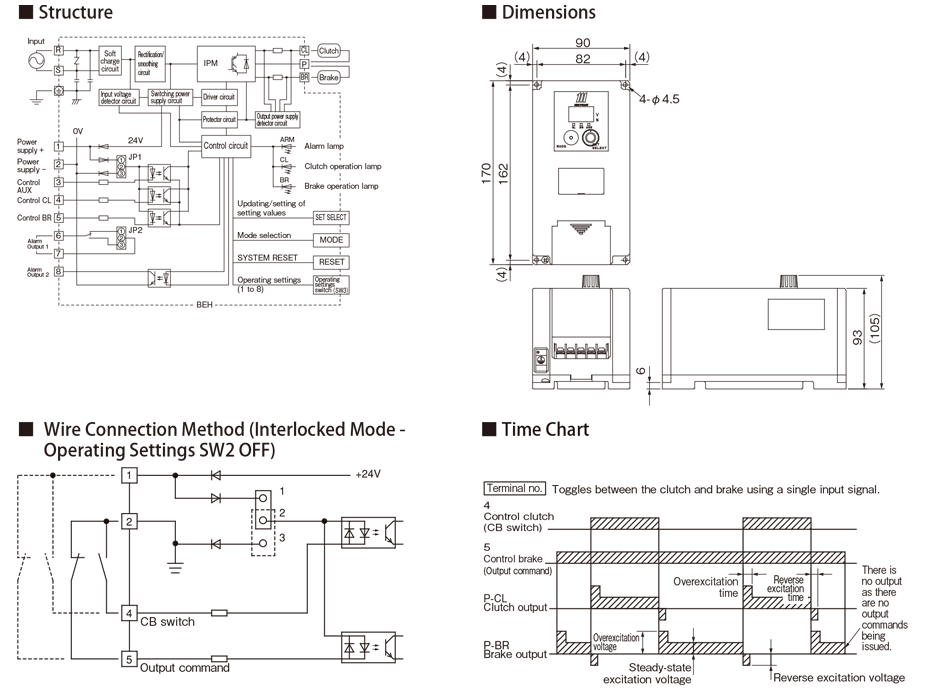

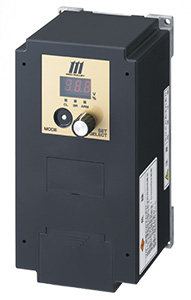

Electromagnetic Clutch and Brake Power Supply Unit BEH

Just connect the device to the AC outlet power supply (100/200 VAC) to receive the 24 VDC excitation power supply necessary for the electromagnetic clutch and brake. In particular, a combination mode to interlock the electromagnetic clutch and the electromagnetic brake enables high-accuracy and high-speed operation. The highperformance power supply also includes an auto-tuning function to automatically detect the connected electromagnetic clutch and brake and set the optimal operating conditions, as well as a variety of protection functions; for example, wiring, connection, and setting errors are indicated by an alarm sound to allow the user to easily remove the cause of the error.
