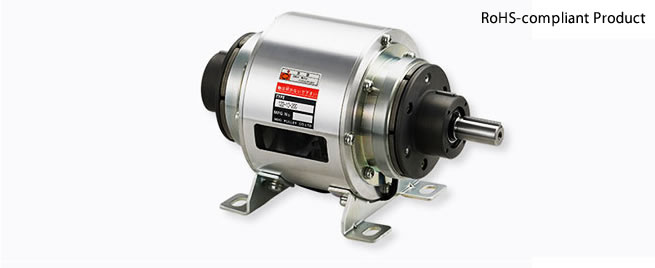

122 Models (Double clutches/brakes) Specifications

122 Models
- [Specifications]
- [Dimensions]

122 Models

[Specifications]

Model	Size	Dynamic friction torque Td ［N・m］	Static friction torque Ts ［N・m］	Coil (at 20℃)				Heat resistance class	Max. rotation speed ［min^-1］	Rotating part moment of inertia J ［kg・m²］	Total work performed until readjustment of the air gap ET ［J］	Armature pull-in time ta ［s］	Torque build-up time tp ［s］	Torque decaying time td ［s］	Mass ［kg］
Model	Size	Dynamic friction torque Td ［N・m］	Static friction torque Ts ［N・m］	Voltage ［V］	Wattage ［W］	Current ［A］	Resistance ［Ω］	Heat resistance class	Max. rotation speed ［min^-1］	Rotating part moment of inertia J ［kg・m²］		Armature pull-in time ta ［s］	Torque build-up time tp ［s］	Torque decaying time td ［s］	Mass ［kg］
122-06-20G	06	5	5.5	DC24	11	0.46	52	B	3000	2.19×10^-4	36×10⁶	C: 0.020/B: 0.015	C: 0.041/B: 0.033	C: 0.020/B: 0.015	4
122-08-20G	08	10	11	DC24	15	0.63	38	B	3000	6.55×10^-4	60×10⁶	C: 0.023/B: 0.016	C: 0.051/B: 0.042	C: 0.030/B: 0.025	6
122-10-20G	10	20	22	DC24	20	0.83	29	B	3000	2.12×10^-3	130×10⁶	C: 0.025/B: 0.018	C:0.063 / B:0.056	C: 0.050/B: 0.030	9
122-12-20G	12	40	45	DC24	25	1.04	23	B	3000	6.35×10^-3	250×10⁶	C: 0.040/B: 0.027	C: 0.115/B: 0.090	C: 0.065/B: 0.050	17
122-16-20G	16	80	90	DC24	35	1.46	16	B	3000	1.99×10^-2	470×10⁶	C: 0.050/B: 0.035	C: 0.160/B: 0.127	C: 0.085/B: 0.055	29
122-20-20G	20	160	175	DC24	45	1.88	13	B	2500	6.15×10^-2	10×10⁸	C: 0.090/B: 0.065	C: 0.250/B: 0.200	C: 0.130/B: 0.070	58

*The dynamic friction torque, Td, is measured at a relative speed of 100 min-1. Depending on the initial torque characteristics, break-in to condition the engaging surfaces may also be required.

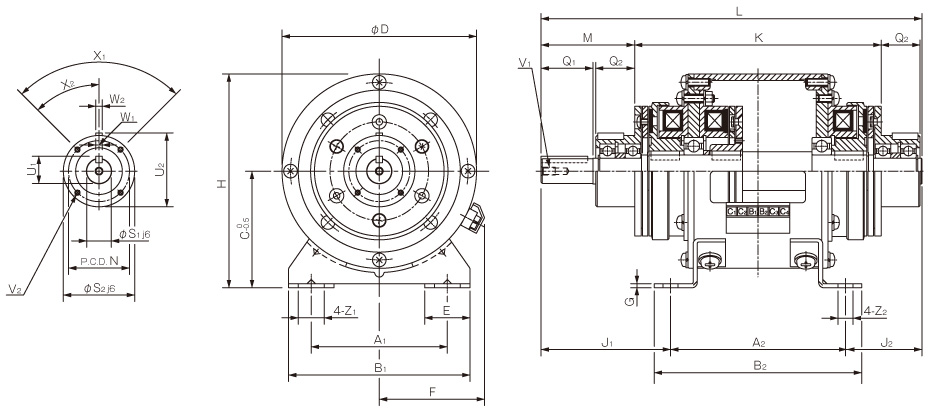

[Dimensions]

Size	Dimensions of part
Size	A1	A2	B1	B2	C	D	E	F	G	H	J1	J2	K	L	M	N	Z1	Z2
06	65	90	90	105	65	100	27.5	61	2.6	115	73	48	142	211	47	33	13.5	6.5
08	80	110	110	130	80	125	32.5	72	3.2	142.5	83	53	162	246	57	37	15.5	9
10	105	135	140	160	90	150	35	81	3.2	165	100	59	190	294	72	47	20	11.5
12	135	160	175	185	112	190	42.5	97	4.5	207	124	74	222	358	93	52	24.5	11.5
16	155	200	200	230	132	230	45	109	6	247	150.5	89.5	272	440	114.5	62	28	14
20	195	240	240	270	160	290	47.5	124	20	305	197	114	348	551	143	74.5	28	14

Size	Dimensions of shaft
Size	Q1	Q2	S1	S2	U1	U2	V1	V2	X1	X2	W1, 2
06	25	20	11	38	12.5	39.5	M4×0.7, length: 8	3-M4×0.7, length: 4	3° to 120°	60°	4
08	30	25	14	45	16	47	M4×0.7, length: 8	3-M4×0.7, length: 6	3° to 120°	60°	5
10	40	30	19	55	21	57	M6×1, length: 11	4-M4×0.7, length: 8	4° to 90°	45°	5
12	50	40	24	64	27	67	M6×1, length: 11	4-M4×0.7, length: 8	4° to 90°	45°	7
16	60	50	28	75	31	78	M6×1, length: 11	6-M5×0.8, length: 8	6° to 60°	30°	7
20	80	60	38	90	41.5	93.5	M10×1.5, length: 17	4-M6×1, length: 12	4° to 90°	45°	10

*The input/output keyways are old JIS standard class 2 while the key is old JIS standard class 1. Note that the keyway dimensions of the unit hub part do not conform to JIS standards. Check them on the dimensions table above.

*When inserting pulleys or the like onto output shafts, use the supplied insertion set.

*The 122-20-20G base is a casting.
