Features of BXL Models

These are dry, spring-actuated brakes that are compact and dedicated for braking. They use a friction material with high wear resistance, stand up to long hours of use, have small torque fluctuations, and brake loads instantly even under abnormal circumstances.The effect of the rotor spring located on the outer periphery of the rotor reduces unpleasant high-frequency friction noise that occurs during braking. Braking is quiet.

Options of BXL Models

Release Levers *Made to Order

Model	Size	Static friction torque Ts ［N・m］	Coil (at 20℃)	Heat resistance class	Lead wire	Max. rotation speed ［min^-1］	Rotating part moment of inertia J ［kg・m²］	Allowable braking energy rate Pbaℓ ［W］	Total braking energy ET ［J］	Armature pull-in time ta ［s］	Armature release time tar ［s］	Mass ［kg］
Voltage ［V］	Wattage ［W］	Current ［A］	Resistance ［Ω］	UL style	Size
BXL-06-10	06	2	DC24	15	0.63	38.4	F	UL3398	AWG22	5000	3.75×10^-5	58.3	2.0×10⁷	0.035	0.020	0.9
DC45	12	0.27	169
DC90	12	0.13	677
BXL-08-10	08	4	DC24	22.5	0.94	25.6	F	UL3398	AWG18	5000	6.25×10^-5	91.7	3.5×10⁷	0.040	0.020	1.3
DC45	19	0.41	110
DC90	19	0.21	440
BXL-10-10	10	8	DC24	28	1.14	21.1	F	UL3398	AWG18	4000	13.75×10^-5	108.3	6.2×10⁷	0.050	0.025	2.3
DC45	25	0.54	83.0
DC90	25	0.27	331
BXL-12-10	12	16	DC24	35	1.46	16.5	F	UL3398	AWG18	3600	33.75×10^-5	133.3	9.0×10⁷	0.070	0.030	3.4
DC90	30	0.33	271
BXL-16-10	16	22	DC24	39	1.64	14.6	F	UL3398	AWG18	3000	7.35×10^-4	183.3	11.4×10⁷	0.100	0.035	5.4
DC90	39	0.43	207

Option no.: 12
In addition to the manual release tap of the standard product, we also offer an optional manual release lever. See the dimensions table below for the dimensions of brakes with release levers. Other specifications are the same as the standard specifications.

[Dimensions]

Unit (mm)

Model

BXL-06-12

26.5

42.4

20.5

49.5

33.7

2.6

4.5

0.15

1.5

BXL-08-12

20.8

2.9

122

277

5.5

10.5

0.15

BXL-10-12

116

104

51.2

9.5

57.5

25.3

3.2

162.5

32.5

6.5

130

103

12.5

0.2

2.5

BXL-12-12

138

124

56.4

64.8

43.5

23.3

200

6.5

160

121

12.5

0.2

BXL-16-12

158

142

143

64.9

22.5

72.5

27.7

230

186

140

15.5

0.25

Quiet Mechanism (Silencing Spring) *Made to Order

Option no.: S1
There is a extremely small structural backlash (see figure on the right) between the rotor and the rotor hub. In applications that are prone to microvibrations of the drive shaft such as single-phase motors, this backlash may produce rattling (banging). The silencing spring for the rotor hub reduces this rattling..

Quiet Mechanism (Pull-in Noise Reduction Mechanism) *Made to Order

Option no.: S2
When the brake is energized, a magnetic circuit is formed, and the armature is pulled to the stator by that magnetic force. At that time, the armature touches the magnetic pole of the stator and a noise is produced. This sound (pull-in noise) is reduced by putting shock absorbing material in the stator's magnetic pole part..
In option S2, in addition to the pull-in noise reduction mechanism, the silencing spring (option S1) is also supplemented..

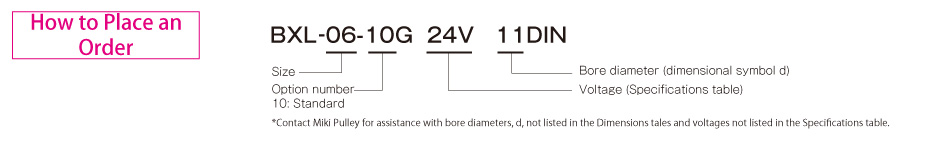

List of Option Numbers

Description of options	No quiet mechanism	Silencing spring	Silencing spring + Pull-in noise reduction mechanism
No release lever	10	10S1	10S2
Has release lever	12	12S1	12S2

Description of
options

No quiet
mechanism

Silencing spring

Silencing spring +
Pull-in noise reduction
mechanism

No release lever

10S1

10S2

Has release lever

12S1

12S2

*Option 10 uses standard specifications.
