Product Information

ANG Models Specifications

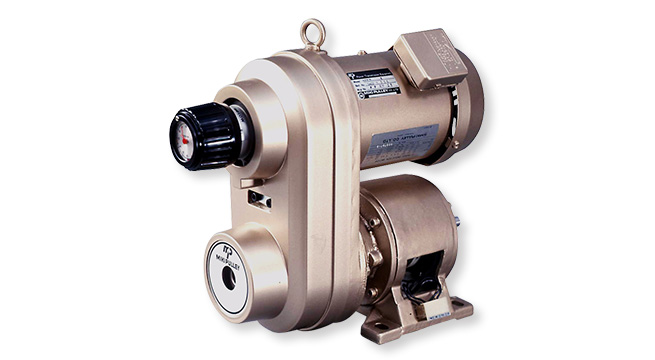

ANG

[Specifications1]

ModelMotor output[kW]PolesPower supply Voltage[V]/Frequency[Hz]Speed change ratioSpeed changer in useBelt model in useSpeed reducersMass [kg]
Motor side speed changer modelMachine side speed changer modelA FrameB Frame
ANG-02GDN0.243-phase 200/50、200・220/601:4AK-90-AN-11PE-106-AN-12H1022V196SWL2-021516
ANG-04GDN0.443-phase 200/50、200・220/601:4AK-106-AN-14NPE-125-AN-15H1422V236SWL2-0421.523.5
ANG-07GDN0.7543-phase 200/50、200・220/601:4AK-125-AN-19NPE-150N-AN-20H1422V270SWL2-084043
ANG-15GDN1.543-phase 200/50、200・220/601:4AK-150-AN-24NPE-180N-AN-22H1922V338SWL2-157191

※Totally enclosed fan cooled motors in conformance with JIS C 4210 for 0.2kW・0.4kW motors, and JIS C 4213 for motors over 0.75 kW.

[Specifications2]

ModelFrequency[Hz]Output shaft revolution speed[min-1] and output shaft torque[N・m] in each deceleration ratio
A FrameB Frame
1/51/101/151/201/251/301/401/501/601/80
50100~40050~20033.5~13425~10020~8017~6812.5~5010~408.5~346.25~25
60120~48060~24040~16030~12024~9620~8015~6012~4810~407.5~30
ANG-02GDN506~3.612~7.218~10.823~14.429~1835~21.645~27.556~34.467~41.289~55
606~2.712~5.418~8.123~10.829~13.535~16.245~20.656~25.667~30.989~41.2
ANG-04GDN5012~7.223~14.435~21.647~28.859~3670~43.289~55111~68.8134~82.5178~110.1
6012~6.323~11.735~17.547~23.459~29.270~35.189~44.7111~55.9134~67178~89.4
ANG-07GDN5022~13.544~2766~40.588~54110~67.5132~81167~103.2209~129251~176.4334~206.4
6022~10.844~21.666~32.488~43.2110~54132~64.8167~82.5209~103.2251~123.8334~165.1
ANG-15GDN5044~27.988~55.8132~83.7176~111.6220~139.5264~167.4334~213.2418~266.6501~319.9668~426.5
6044~22.588~45132~67.5176~90220~112.5264~135334~172418~215501~258668~334

※There are instances when output shaft torque is limited by the reducer tolerance.

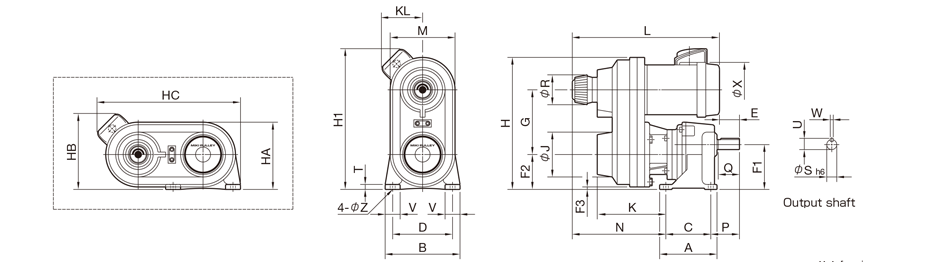

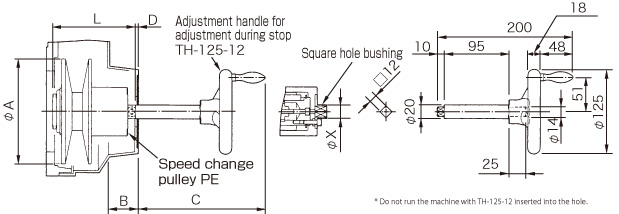

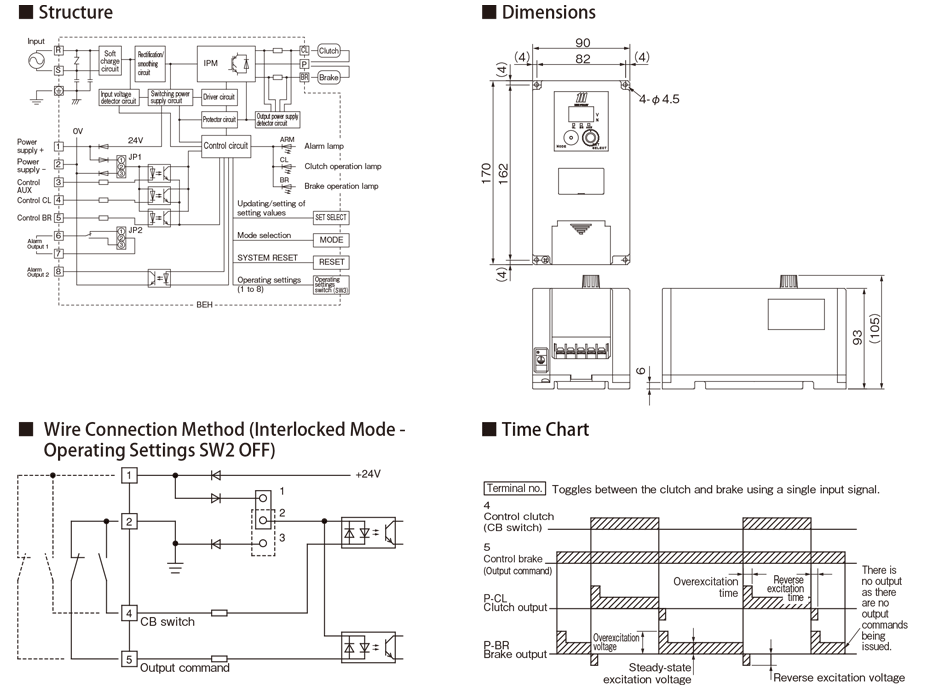

[Dimensions]

Unit [mm]
ModelANG-02GDNANG-04GDNANG-07GDNANG-15GDN
-A-B-A-B-A-B-A-B
A669090120120164164196
B134156156174174204204256
C4065659090130130150
D110130130140140170170210
E-31.5-4.5-1.59.5225039.5103.5
F1859090110110130130155
F26970708585101101120
F3-0.50.5-96-106-910
G140140160160186186239239
H279280309324366382450469
H1319319339354387403464484
J9898108108134134155155
K177169200179216192240250
L345.5345.5373373417.5417.5462.5462.5
M139139158158190190220220
N229221251.5230.5287.5263.5298308
P45555562627474108
Q3040404545555582
R7070707080808080
T1012121515151520
V272828373742.54050
S1822222828323242
U20.524.524.53131353545
W66688101012
X131131131131162162187187
Z911111111131315
KL109109109109116.5116.5125125
HA138.5139.5149166180198211230
HB179179179194201217226245
HC319327348356397404.5474492
