SFF［SS］タイプ
送り軸用途のサーボモータ駆動の仕様・寸法から、許容トルク、対応軸径などを設定、各社最新のサーボモータにベストマッチします。モデルは、組み立て作業性の良いクランプ方式と、信頼性の高いくさび締結方式をラインアップ。許容トルクは従来品を大幅に上回ります。剛性の高いシングルエレメントタイプです。

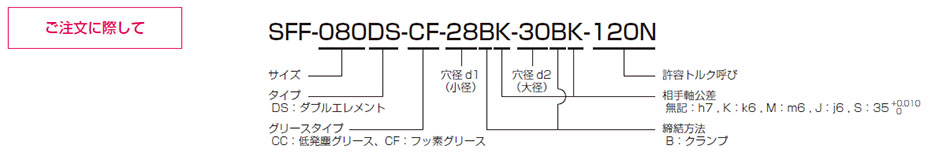

【仕様】クランプ締結タイプ
| 型式 | 許容トルク [N･m] | 許容誤差 | 最高回転速度 [min−1] | ねじりばね定数 [N･m/rad] | 軸方向ばね定数 [N/mm] | 慣性モーメント [kg･m2] | 質量 [kg] | ||
|---|---|---|---|---|---|---|---|---|---|
| 偏心 [mm] | 偏角 [°] | 軸方向 [mm] | |||||||
| SFF-040SS-□B-□B-8N | 8 | 0.02 | 1 | ±0.2 | 18000 | 15000 | 174 | 0.03 × 10−3 | 0.17 |
| SFF-040SS-□B-□B-12N | 12 | 0.02 | 1 | ±0.2 | 18000 | 15000 | 174 | 0.03 × 10−3 | 0.17 |
| SFF-050SS-□B-□B-25N | 25 | 0.02 | 1 | ±0.3 | 18000 | 32000 | 145 | 0.10 × 10−3 | 0.36 |
| SFF-060SS-□B-□B-60N | 60 | 0.02 | 1 | ±0.3 | 18000 | 104000 | 399 | 0.22 × 10−3 | 0.52 |
| SFF-060SS-□B-□B-80N | 80 | 0.02 | 1 | ±0.3 | 18000 | 104000 | 399 | 0.23 × 10−3 | 0.49 |
| SFF-070SS-□B-□B-90N | 90 | 0.02 | 1 | ±0.5 | 18000 | 240000 | 484 | 0.40 × 10−3 | 0.72 |
| SFF-070SS-□B-□B-100N | 100 | 0.02 | 1 | ±0.5 | 18000 | 240000 | 484 | 0.42 × 10−3 | 0.67 |
| SFF-080SS-□B-□B-150N | 150 | 0.02 | 1 | ±0.5 | 17000 | 120000 | 96 | 0.79 × 10−3 | 1.04 |
| SFF-080SS-□B-□B-200N | 200 | 0.02 | 1 | ±0.5 | 17000 | 310000 | 546 | 1.25 × 10−3 | 1.40 |
| SFF-090SS-□B-□B-250N | 250 | 0.02 | 1 | ±0.6 | 15000 | 520000 | 321 | 1.54 × 10−3 | 1.62 |
| SFF-090SS-□B-□B-300N | 300 | 0.02 | 1 | ±0.6 | 15000 | 520000 | 321 | 1.58 × 10−3 | 1.53 |
| SFF-100SS-□B-□B-450N | 450 | 0.02 | 1 | ±0.65 | 13000 | 740000 | 540 | 3.27 × 10−3 | 2.53 |
| SFF-120SS-□B-□B-600N | 600 | 0.02 | 1 | ±0.8 | 11000 | 970000 | 360 | 6.90 × 10−3 | 3.78 |
- 最高回転速度は動バランスを考慮しておりません。
- ねじりばね定数の値は、エレメント単体での値になります。
- 慣性モーメントおよび質量は、最大穴径時の値となります。
【寸法】クランプ締結タイプ
| 型式 | 許容トルク [N･m] | 許容誤差 | 最高回転速度 [min−1] | ねじりばね定数 [N･m/rad] | 軸方向ばね定数 [N/mm] | 慣性モーメント [kg･m2] | 質量 [kg] | ||
|---|---|---|---|---|---|---|---|---|---|
| 偏心 [mm] | 偏角 [°] | 軸方向 [mm] | |||||||
| SFF-040SS-□B-□B-8N | 8 | 0.02 | 1 | ±0.2 | 18000 | 15000 | 174 | 0.03 × 10−3 | 0.17 |
| SFF-040SS-□B-□B-12N | 12 | 0.02 | 1 | ±0.2 | 18000 | 15000 | 174 | 0.03 × 10−3 | 0.17 |
| SFF-050SS-□B-□B-25N | 25 | 0.02 | 1 | ±0.3 | 18000 | 32000 | 145 | 0.10 × 10−3 | 0.36 |
| SFF-060SS-□B-□B-60N | 60 | 0.02 | 1 | ±0.3 | 18000 | 104000 | 399 | 0.22 × 10−3 | 0.52 |
| SFF-060SS-□B-□B-80N | 80 | 0.02 | 1 | ±0.3 | 18000 | 104000 | 399 | 0.23 × 10−3 | 0.49 |
| SFF-070SS-□B-□B-90N | 90 | 0.02 | 1 | ±0.5 | 18000 | 240000 | 484 | 0.40 × 10−3 | 0.72 |
| SFF-070SS-□B-□B-100N | 100 | 0.02 | 1 | ±0.5 | 18000 | 240000 | 484 | 0.42 × 10−3 | 0.67 |
| SFF-080SS-□B-□B-150N | 150 | 0.02 | 1 | ±0.5 | 17000 | 120000 | 96 | 0.79 × 10−3 | 1.04 |
| SFF-080SS-□B-□B-200N | 200 | 0.02 | 1 | ±0.5 | 17000 | 310000 | 546 | 1.25 × 10−3 | 1.40 |
| SFF-090SS-□B-□B-250N | 250 | 0.02 | 1 | ±0.6 | 15000 | 520000 | 321 | 1.54 × 10−3 | 1.62 |
| SFF-090SS-□B-□B-300N | 300 | 0.02 | 1 | ±0.6 | 15000 | 520000 | 321 | 1.58 × 10−3 | 1.53 |
| SFF-100SS-□B-□B-450N | 450 | 0.02 | 1 | ±0.65 | 13000 | 740000 | 540 | 3.27 × 10−3 | 2.53 |
| SFF-120SS-□B-□B-600N | 600 | 0.02 | 1 | ±0.8 | 11000 | 970000 | 360 | 6.90 × 10−3 | 3.78 |
- クランプボルトM1･M2の呼びは数量-ねじの呼びで、数量は片側ハブの数量です。
【標準穴径】クランプ締結タイプ
| 型式 | d1 [mm] | d2 [mm] | D [mm] | L [mm] | N1・N2 [mm] | LF [mm] | S [mm] | K [mm] | M1･M2 数量-呼び | M1･M2 締め付け トルク [N･m] |
|---|---|---|---|---|---|---|---|---|---|---|
| SFF-040SS-□B-□B-8N | 8･9･9.525 | 8･9･9.525･10･11･12･14･15･16 | 38 | 38.9 | 33 | 17.5 | 3.9 | 17 | 2-M4 | 3.4 |
| SFF-040SS-□B-□B-12N | 10･11･12･14･15･16 | 10･11･12･14･15･16 | 38 | 38.9 | 33 | 17.5 | 3.9 | 17 | 2-M4 | 3.4 |
| SFF-050SS-□B-□B-25N | 10･11･12･14･15･16･17･18･19 | 10･11･12･14･15･16･17･18･19 | 48 | 48.4 | 42 | 21.5 | 5.4 | 20 | 2-M5 | 7 |
| SFF-060SS-□B-□B-60N | 12･14･15･16･17･18･19 | 12･14･15･16･17･18･19･20･22 | 58 | 53.4 | 44 | 24 | 5.4 | 32 | 2-M6 | 14 |
| SFF-060SS-□B-□B-60N | - | 24･25･28 | 58 | 53.4 | 48 | 24 | 5.4 | 32 | 2-M5 | 7 |
| SFF-060SS-□B-□B-60N | - | 30 | 58 | 53.4 | 52 | 24 | 5.4 | 32 | 2-M5 | 7 |
| SFF-060SS-□B-□B-80N | 20･22 | 20･22 | 58 | 53.4 | 44 | 24 | 5.4 | 32 | 2-M6 | 14 |
| SFF-060SS-□B-□B-80N | 24･25･28 | 24･25･28 | 58 | 53.4 | 48 | 24 | 5.4 | 32 | 2-M5 | 7 |
| SFF-060SS-□B-□B-80N | 30 | 30 | 58 | 53.4 | 52 | 24 | 5.4 | 32 | 2-M5 | 7 |
| SFF-070SS-□B-□B-90N | 18･19 | 18･19･20･22･24･25 | 68 | 55.9 | 47 | 25 | 5.9 | 38 | 2-M6 | 14 |
| SFF-070SS-□B-□B-90N | - | 28･30･32･35 | 68 | 55.9 | 56 | 25 | 5.9 | 38 | 2-M6 | 14 |
| SFF-070SS-□B-□B-100N | 20･22･24･25 | 20･22･24･25 | 68 | 55.9 | 47 | 25 | 5.9 | 38 | 2-M6 | 14 |
| SFF-070SS-□B-□B-100N | 28･30･32･35 | 28･30･32･35 | 68 | 55.9 | 56 | 25 | 5.9 | 38 | 2-M6 | 14 |
| SFF-080SS-□B-□B-150N | 22･24･25 | 22･24･25 | 78 | 68.3 | 53 | 30 | 8.3 | 37 | 2-M8 | 34 |
| SFF-080SS-□B-□B-150N | 28･30･32･35 | 28･30･32･35 | 78 | 68.3 | 56 | 30 | 8.3 | 37 | 2-M6 | 14 |
| SFF-080SS-□B-□B-200N | 22･24･25 | 22･24･25 | 78 | 67.7 | 53 | 30 | 7.7 | 42 | 2-M8 | 34 |
| SFF-080SS-□B-□B-200N | 28･30･32･35 | 28･30･32･35 | 78 | 67.7 | 70 | 30 | 7.7 | 42 | 2-M8 | 34 |
| SFF-080SS-□B-□B-200N | 38 | 38 | 78 | 67.7 | 74 | 30 | 7.7 | 42 | 2-M8 | 34 |
| SFF-090SS-□B-□B-250N | 25･28 | 25･28･30･32 | 88 | 68.3 | 66 | 30 | 8.3 | 50 | 2-M8 | 34 |
| SFF-090SS-□B-□B-250N | - | 35･38･40･42 | 88 | 68.3 | 74 | 30 | 8.3 | 50 | 2-M8 | 34 |
| SFF-090SS-□B-□B-300N | 30･32 | 30･32 | 88 | 68.3 | 66 | 30 | 8.3 | 50 | 2-M8 | 34 |
| SFF-090SS-□B-□B-300N | 35･38･40･42 | 35･38･40･42 | 88 | 68.3 | 74 | 30 | 8.3 | 50 | 2-M8 | 34 |
| SFF-100SS-□B-□B-450N | 32･35･38･40･42･45･48 | 32･35･38･40･42･45･48 | 98 | 90.2 | 84 | 40 | 10.2 | 56 | 2-M10 | 68 |
| SFF-120SS-□B-□B-600N | 32･35･38･40･42･45 | 32･35･38･40･42･45 | 118 | 90.2 | 84 | 40 | 10.2 | 68 | 2-M10 | 68 |
| SFF-120SS-□B-□B-600N | 48･50･55 | 48･50･55 | 118 | 90.2 | 100 | 40 | 10.2 | 68 | 2-M10 | 68 |
- ●印の入っている欄の穴径は標準穴径として対応しています。
【仕様】 くさび締結タイプ
| 型式 | 許容トルク ［N･m］ | 許容誤差 | 最高回転速度 ［min−1］ | ねじりばね定数 ［N･m/rad］ | 軸方向ばね定数 ［N/mm］ | 慣性モーメント ［kg･m2］ | 質量 ［kg］ | ||
|---|---|---|---|---|---|---|---|---|---|
| 偏心 ［mm］ | 偏角 ［°］ | 軸方向 ［mm］ | |||||||
| SFF-070SS-□K-□K-100N | 100 | 0.02 | 1 | ±0.5 | 18000 | 240000 | 484 | 0.66 × 10−3 | 0.92 |
| SFF-080SS-□K-□K-150N | 150 | 0.02 | 1 | ±0.5 | 17000 | 120000 | 96 | 1.21 × 10−3 | 1.03 |
| SFF-080SS-□K-□K-200N | 200 | 0.02 | 1 | ±0.5 | 17000 | 310000 | 546 | 1.11 × 10−3 | 1.26 |
| SFF-090SS-□K-□K-300N | 300 | 0.02 | 1 | ±0.6 | 15000 | 520000 | 321 | 1.75 × 10−3 | 1.48 |
| SFF-100SS-□K-□K-450N | 450 | 0.02 | 1 | ±0.65 | 13000 | 740000 | 540 | 2.56 × 10−3 | 1.87 |
| SFF-120SS-□K-□K-600N | 600 | 0.02 | 1 | ±0.8 | 11000 | 970000 | 360 | 5.33 × 10−3 | 2.50 |
| SFF-140SS-□K-□K-800N | 800 | 0.02 | 1 | ±1.0 | 10000 | 1400000 | 360 | 10.28 × 10−3 | 4.66 |
| SFF-140SS-□K-□K-1000N | 1000 | 0.02 | 1 | ±1.0 | 10000 | 1400000 | 360 | 14.70 × 10−3 | 5.01 |
- 最高回転速度は動バランスを考慮しておりません。
- ねじりばね定数の値は、エレメント単体での値になります。
- 慣性モーメントおよび質量は、最大穴径時の値となります。
【寸法】 くさび締結タイプ
| 型式 | d1 | d2 | D | L | N1･N2 | LF | S | C | K | H | M1 数量-呼び | M1 締め付けトルク ［N･m］ | M2 数量-呼び |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SFF-070SS-□K-□K-100N | 18･19 | 18･19 | 68 | 62.9 | 53 | 23.5 | 5.9 | 5 | 38 | 3-5.1 | 6-M6 | 10 | 3-M6 |
| SFF-070SS-□K-□K-100N | 20･22･24･25 | 20･22･24･25 | 68 | 62.9 | 58 | 23.5 | 5.9 | 5 | 38 | 3-5.1 | 6-M6 | 10 | 3-M6 |
| SFF-070SS-□K-□K-100N | 28･30 | 28･30 | 68 | 62.9 | 63 | 23.5 | 5.9 | 5 | 38 | 3-5.1 | 6-M6 | 10 | 3-M6 |
| SFF-070SS-□K-□K-100N | 32･35 | 32･35 | 68 | 62.9 | 68 | 23.5 | 5.9 | 5 | 38 | 3-5.1 | 6-M6 | 10 | 3-M6 |
| SFF-080SS-□K-□K-150N | 22･24･25 | 22･24･25 | 78 | 69.3 | 58 | 25.5 | 8.3 | 5 | 37 | 4-5.1 | 4-M6 | 10 | 2-M6 |
| SFF-080SS-□K-□K-150N | 28･30 | 28･30 | 78 | 69.3 | 63 | 25.5 | 8.3 | 5 | 37 | 4-5.1 | 4-M6 | 10 | 2-M6 |
| SFF-080SS-□K-□K-150N | 32･35 | 32･35 | 78 | 69.3 | 68 | 25.5 | 8.3 | 5 | 37 | 4-5.1 | 4-M6 | 10 | 2-M6 |
| SFF-080SS-□K-□K-150N | - | 38 | 78 | 69.3 | 73 | 25.5 | 8.3 | 5 | 37 | 4-5.1 | 4-M6 | 10 | 2-M6 |
| SFF-080SS-□K-□K-200N | 22･24･25 | 22･24･25 | 78 | 68.7 | 58 | 25.5 | 7.7 | 5 | 42 | 3-5.1 | 6-M6 | 10 | 3-M6 |
| SFF-080SS-□K-□K-200N | 28･30 | 28･30 | 78 | 68.7 | 63 | 25.5 | 7.7 | 5 | 42 | 3-5.1 | 6-M6 | 10 | 3-M6 |
| SFF-080SS-□K-□K-200N | 32･35 | 32･35 | 78 | 68.7 | 68 | 25.5 | 7.7 | 5 | 42 | 3-5.1 | 6-M6 | 10 | 3-M6 |
| SFF-080SS-□K-□K-200N | 38 | 38 | 78 | 68.7 | 73 | 25.5 | 7.7 | 5 | 42 | 3-5.1 | 6-M6 | 10 | 3-M6 |
| SFF-090SS-□K-□K-300N | 28･30 | 28･30 | 88 | 69.3 | 63 | 25.5 | 8.3 | 5 | 50 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-090SS-□K-□K-300N | 32･35 | 32･35 | 88 | 69.3 | 68 | 25.5 | 8.3 | 5 | 50 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-090SS-□K-□K-300N | 38･40･42 | 38･40･42 | 88 | 69.3 | 73 | 25.5 | 8.3 | 5 | 50 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-090SS-□K-□K-300N | 45 | 45 | 88 | 69.3 | 78 | 25.5 | 8.3 | 5 | 50 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-090SS-□K-□K-300N | 48 | 48 | 88 | 69.3 | 83 | 25.5 | 8.3 | 5 | 50 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-100SS-□K-□K-450N | 32･35 | 32･35 | 98 | 75.2 | 68 | 27.5 | 10.2 | 5 | 56 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-100SS-□K-□K-450N | 38･40･42 | 38･40･42 | 98 | 75.2 | 73 | 27.5 | 10.2 | 5 | 56 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-100SS-□K-□K-450N | 45 | 45 | 98 | 75.2 | 78 | 27.5 | 10.2 | 5 | 56 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-100SS-□K-□K-450N | 48･50 | 48･50 | 98 | 75.2 | 83 | 27.5 | 10.2 | 5 | 56 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-120SS-□K-□K-600N | 35 | 35 | 118 | 75.2 | 68 | 27.5 | 10.2 | 5 | 68 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-120SS-□K-□K-600N | 38･40･42 | 38･40･42 | 118 | 75.2 | 73 | 27.5 | 10.2 | 5 | 68 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-120SS-□K-□K-600N | 45 | 45 | 118 | 75.2 | 78 | 27.5 | 10.2 | 5 | 68 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-120SS-□K-□K-600N | 48･50･52 | 48･50･52 | 118 | 75.2 | 83 | 27.5 | 10.2 | 5 | 68 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-120SS-□K-□K-600N | 55 | 55 | 118 | 75.2 | 88 | 27.5 | 10.2 | 5 | 68 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-120SS-□K-□K-600N | 60･62･65 | 60･62･65 | 118 | 75.2 | 98 | 27.5 | 10.2 | 5 | 68 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-120SS-□K-□K-600N | - | 70 | 118 | 75.2 | 108 | 27.5 | 10.2 | 5 | 68 | 3-6.8 | 6-M6 | 10 | 3-M6 |
| SFF-140SS-□K-□K-800N | 35･38 | 35･38 | 138 | 94.6 | 83 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
| SFF-140SS-□K-□K-800N | 40･42･45 | 40･42･45 | 138 | 94.6 | 88 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
| SFF-140SS-□K-□K-800N | - | 48･50･52 | 138 | 94.6 | 98 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
| SFF-140SS-□K-□K-800N | - | 55･60 | 138 | 94.6 | 108 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
| SFF-140SS-□K-□K-800N | - | 62･65･70 | 138 | 94.6 | 118 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
| SFF-140SS-□K-□K-800N | - | 75･80 | 138 | 94.6 | 128 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
| SFF-140SS-□K-□K-1000N | 48･50･52 | 48･50･52 | 138 | 94.6 | 98 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
| SFF-140SS-□K-□K-1000N | 55･60 | 55･60 | 138 | 94.6 | 108 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
| SFF-140SS-□K-□K-1000N | 62･65･70 | 62･65･70 | 138 | 94.6 | 118 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
| SFF-140SS-□K-□K-1000N | 75 | 75･80 | 138 | 94.6 | 128 | 36.5 | 10.6 | 5.5 | 78 | 3-8.6 | 6-M8 | 24 | 3-M8 |
- 加圧ボルトM1・取り外し用ねじ穴M2の呼びは数量-ねじの呼びです。また、H･M1･M2の数量は片側ハブの数量です。
【標準穴径】くさび締結タイプ
| 型式 | 標準穴径 d1･d2[mm] | ||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 呼び | 18 | 19 | 20 | 22 | 24 | 25 | 28 | 30 | 32 | 35 | 38 | 40 | 42 | 45 | 48 | 50 | 52 | 55 | 60 | 62 | 65 | 70 | 75 | 80 | |
| SFF-070SS-□K-□K-100N | d1 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||||
| SFF-070SS-□K-□K-100N | d2 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||||
| SFF-080SS-□K-□K-150N | d1 | ● | ● | ● | ● | ● | ● | ● | |||||||||||||||||
| SFF-080SS-□K-□K-150N | d2 | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||||||
| SFF-080SS-□K-□K-200N | d1 | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||||||
| SFF-080SS-□K-□K-200N | d2 | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||||||
| SFF-090SS-□K-□K-300N | d1 | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||||||||||||
| SFF-090SS-□K-□K-300N | d2 | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||||||||||||
| SFF-100SS-□K-□K-450N | d1 | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||||||
| SFF-100SS-□K-□K-450N | d2 | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||||||
| SFF-120SS-□K-□K-600N | d1 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||
| SFF-120SS-□K-□K-600N | d2 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||||||||
| SFF-140SS-□K-□K-800N | d1 | ● | ● | ● | ● | ● | |||||||||||||||||||
| SFF-140SS-□K-□K-800N | d2 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||||||
| SFF-140SS-□K-□K-1000N | d1 | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||||||||||||
| SFF-140SS-□K-□K-1000N | d2 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ||||||||||||||
- ●印の入っている欄の穴径は標準穴径として対応しています。
テーパ軸対応 SFF-□SS-□B(N)
片側のハブをテーパフランジとすることで、サーボモータのテーパ軸に対応します。
仕様・寸法 シングルエレメント・クランプ方式
| 型式 | 許容トルク ［N・m］ | 慣性モーメント ［kg・m2］ | 質量 ［kg］ |
|---|---|---|---|
| SFF-040SS-□B-11CN-8N | 8 | 0.03×10−3 | 0.20 |
| SFF-040SS-□B-11CN-12N | 12 | 0.03×10−3 | 0.18 |
| SFF-050SS-□B-14CN-25N | 25 | 0.09×10−3 | 0.36 |
| SFF-050SS-□B-16CN-25N | 25 | 0.10×10−3 | 0.41 |
| SFF-060SS-□B-16CN-60N | 60 | 0.18×10−3 | 0.54 |
| SFF-060SS-□B-16CN-80N | 80 | 0.19×10−3 | 0.52 |
- 慣性モーメントおよび質量は、最大穴径時の値となります。
- 上表以外の仕様につきましては、シングルエレメント・クランプ方式の仕様をご参照ください。
| 型式 | d1 [mm] | d2 [mm] | W [mm] | T [mm] | D [mm] | L [mm] | N1 [mm] | Ｎ 2 [mm] | LF1 [mm] | LF2 [mm] | S [mm] | K [mm] | H [mm] | M 数量- 呼び | 締め付け トルク [N･m] | DA [mm] | Ｗ A [mm] | J 呼び×ピッチ | 締め付け トルク [N･m] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SFF-040SS- □ B-11CN-8N | 8 ～ 9.525 | 11 | 4 | 12.2 | 38 | 46.4 | 33 | 22 | 17.5 | 25 | 3.9 | 17 | 5.1 | 2-M4 | 3.4 | 12 | 6 | M6×1.0 | 10 |
| SFF-040SS- □B-11CN-12N | 10 ～ 16 | 11 | 4 | 12.2 | 38 | 46.4 | 33 | 22 | 17.5 | 25 | 3.9 | 17 | 5.1 | 2-M4 | 3.4 | 12 | 6 | M6×1.0 | 10 |
| SFF-050SS- □B-14CN-25N | 10 ～ 19 | 14 | 4 | 15.1 | 48 | 56.9 | 42 | 27.5 | 21.5 | 30 | 5.4 | 20 | 5.1 | 2-M5 | 7 | 15 | 8 | M8×1.0 | 20 |
| SFF-050SS- □B-16CN-25N | 10 ～ 19 | 16 | 5 | 17.3 | 48 | 67.9 | 42 | 29.5 | 21.5 | 41 | 5.4 | 20 | 6.8 | 2-M5 | 7 | 16 | 10 | Ｍ10×1.25 | 30 |
| SFF-060SS- □B-16CN-60N | 12 ～ 19 | 16 | 5 | 17.3 | 58 | 70.4 | 44 | 29.5 | 24 | 41 | 5.4 | 32 | 6.8 | 2-M6 | 14 | 16 | 10 | Ｍ10×1.25 | 30 |
| SFF-060SS- □B-16CN-80N | 20 ～ 22 | 16 | 5 | 17.3 | 58 | 70.4 | 44 | 29.5 | 24 | 41 | 5.4 | 32 | 6.8 | 2-M6 | 14 | 16 | 10 | Ｍ10×1.25 | 30 |
| SFF-060SS- □B-16CN-80N | 24 ～ 28 | 16 | 5 | 17.3 | 58 | 70.4 | 48 | 29.5 | 24 | 41 | 5.4 | 32 | 6.8 | 2-M5 | 7 | 16 | 10 | Ｍ10×1.25 | 30 |
| SFF-060SS- □B-16CN-80N | 30 | 16 | 5 | 17.3 | 58 | 70.4 | 52 | 29.5 | 24 | 41 | 5.4 | 32 | 6.8 | 2-M5 | 7 | 16 | 10 | Ｍ10×1.25 | 30 |
【標準穴径】（テーパ軸）
| 型式 | 標準穴径 d1[mm] | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 8 | 9 | 9.525 | 10 | 11 | 12 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 22 | 24 | 25 | 28 | 30 | |
| SFF-040 □ - □ B-11CN-8N | ● | ● | ● | |||||||||||||||
| SFF-040 □ - □B-11CN-12N | ● | ● | ● | ● | ● | ● | ||||||||||||
| SFF-050 □ - □B-14CN-25N | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||||||
| SFF-050 □ - □B-16CN-25N | ● | ● | ● | ● | ● | ● | ● | ● | ● | |||||||||
| SFF-060 □ - □B-16CN-60N | ● | ● | ● | ● | ● | ● | ● | |||||||||||
| SFF-060 □ - □B-16CN-80N | ● | ● | ● | ● | ● | ● | ||||||||||||
- ●印の入っている欄の穴径は標準穴径として対応しています。
