CO series Specifications

CO SERIES

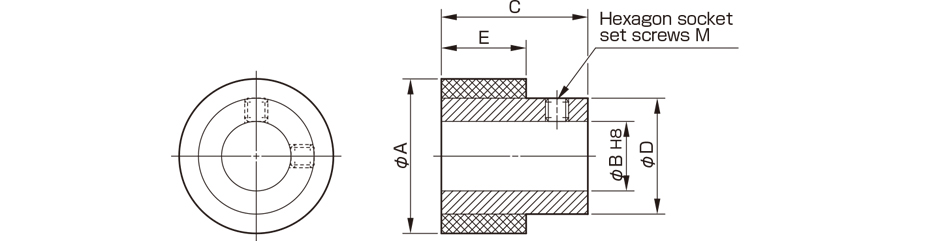

[Specifications and Dimensions]

Set ModelTransmission torque [N・m](at.20℃)A [mm]B [mm]C [mm]D [mm]E [mm]M nominalSet mass[kg]
Air gap
0.5mm1mm2mm
CO2626-18-SF0.1770.1230.0672612252014M40.13
CO3535-18-SF0.7880.6100.3763515322922M50.34


【Download CAD data】

* Download method
1.Right mouse click on the section.
2.Save as

Model No. CAD DATA
CO2626-18 CO2626-18.dxf CO2626-18.step
CO3535-18 CO3535-18.dxf CO3535-18.step
