CP series Specifications

CP SERIES

[Specifications and Dimensions]

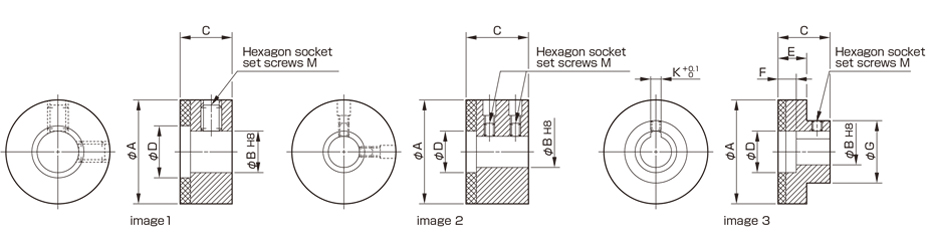

Set ModelTransmission torque [N・m](at.20℃)Reference diagramA [mm]B [mm]C [mm]D [mm]E [mm]F [mm]G [mm]K [mm]M nominalSet mass[kg]
Air gap
1mm5mm10mm
CP1010-02-SF *0.03--image1104103----M2.50.01
CP2020-08-SF0.3260.0320.003image12081410----M40.06
CP2525-08-SF0.7410.1130.014image125101912----M40.12
CP3030-08-SF1.3970.2870.045image130121914----M40.17
CP3535-08-SF2.2590.5790.114image235122416----M40.29
CP4040-08-SF3.5801.0670.249image240122416----M40.41
CP5050-08-SF6.5772.5020.766image350122420149304M40.50
CP6060-08-SF10.1244.5651.680image360152926149405M50.70
CP6565-08-SF *12.8606.0602.392image365152926149405M50.82
CP7070-08-SF15.7907.5333.187image370152926149405M50.92
CP7575-08-SF *17.8609.4904.247image375152926149405M51.10
CP8080-08-SF *19.96010.794.849image380152926149405M51.20
CP100100-12-SF *50.20025.8110.81image31002539421815608M62.40
CP120120-16-SF *95.79048.2719.00image312035415418177010M83.20
CP150150-18-SF *186.36101.4145.82image3150505176182110016M126.20

* * are made to order product.



【Download CAD data】

* Download method
1.Right mouse click on the section.
2.Save as

Model No. CAD DATA
CP1010-08 CP1010-02.dxf CP1010-02.step
CP2020-08 CP2020-08.dxf CP2020-08.step
CP2525-08 CP2525-08.dxf CP2525-08.step
CP3030-08 CP3030-08.dxf CP3030-08.step
CP3535-08 CP3535-08.dxf CP3535-08.step
CP4040-08 CP4040-08.dxf CP4040-08.step
CP5050-08 CP5050-08.dxf CP5050-08.step
CP6060-08 CP6060-08.dxf CP6060-08.step
CP6565-08 CP6565-08.dxf CP6565-08.step
CP7070-08 CP7070-08.dxf CP7070-08.step
CP7575-08 CP7575-08.dxf CP7575-08.step
CP8080-08 CP8080-08.dxf CP8080-08.step
CP100100-12 CP100100-12.dxf CP100100-12.step
CP120120-16 CP120120-16.dxf CP120120-16.step
CP150150-18 CP150150-18.dxf CP150150-18.step
