121(20G) Types (Clutches and brakes)

ダウンロード

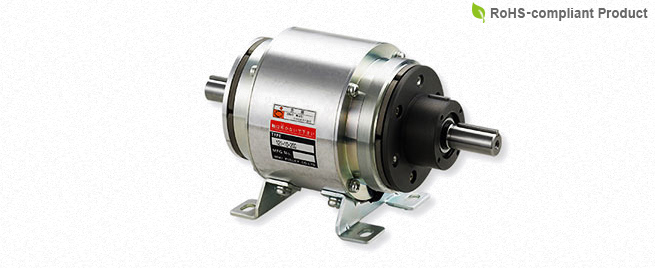

Features of 121(20G) Types (Clutches and brakes)

These are open-mounted clutches and brakes that have through-shaft constructions of clutch and brake outside a light alloy drum.Power is output from the input hub continuously to the output shaft. The output shaft is braked when clutch current is shut off and the brake is energized in response. The construction holds up well under radial loads due to a wide bearing span, so it can be used under high tension when mounted with V pulleys, spur gears or the like. Thanks to the through-shaft construction, output is available at both ends of the shaft, so many mechanism layouts are possible, including using both ends in split driving or mounting a detection disc or the like on one end.
